ADS is not allowing me to create a via definition, why?
录入:edatop.com 点击:
ADS is not allowing me to create a via definition, which is suppose to look like figure 2, but I get something that looks like figure 1 instead, what happened? This is what happens after you click add.

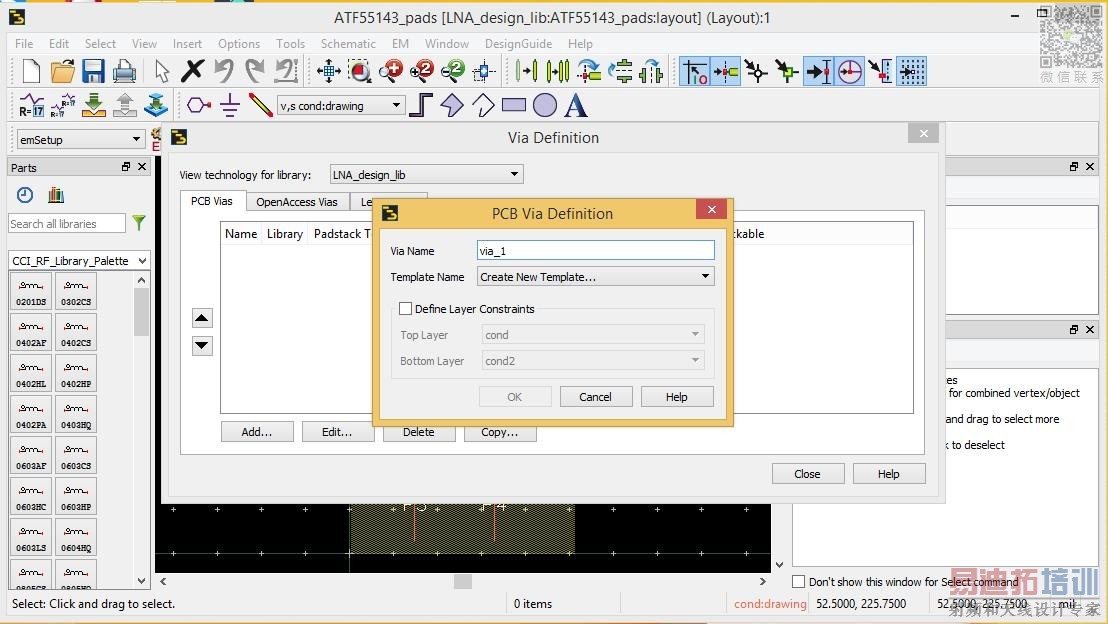

figure 1

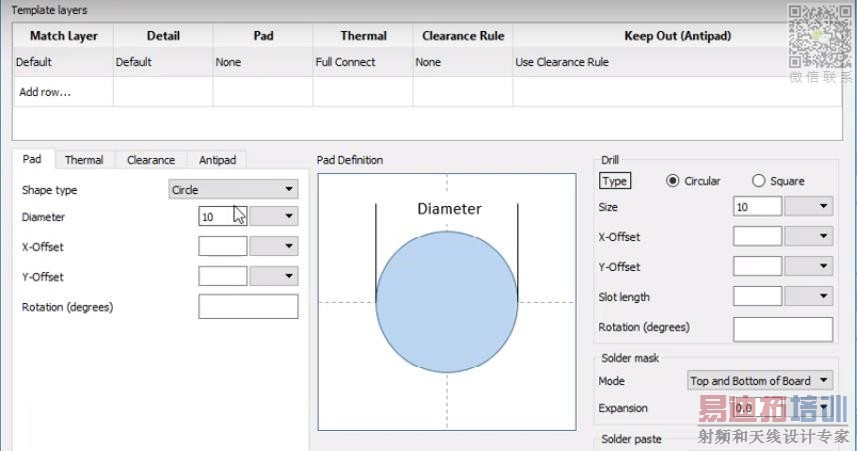

figure 2
figure 1
figure 2
