[ADS] ADS Momentum RF， Momentum Microwave or FEM simulation

hi all,

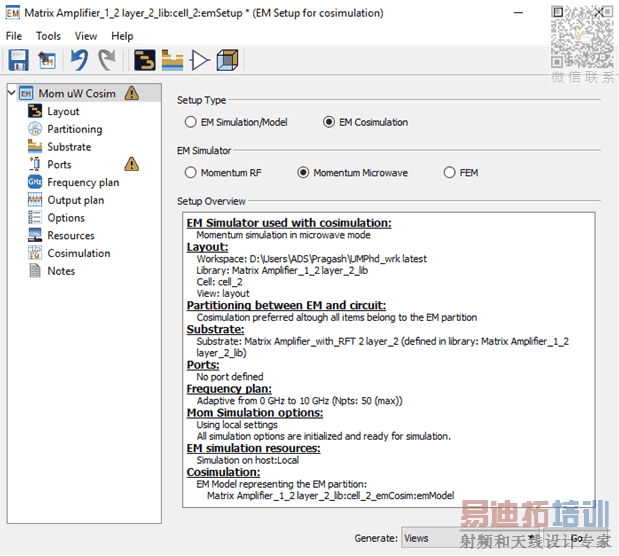

I'm supposed to do EM co-simulation. EM co-simulation meaning layout will be simulated first and lumped components will be connected on the same layout. However, when I selected EM Co-simulation, the simulation stops after two 2 second which is not right!

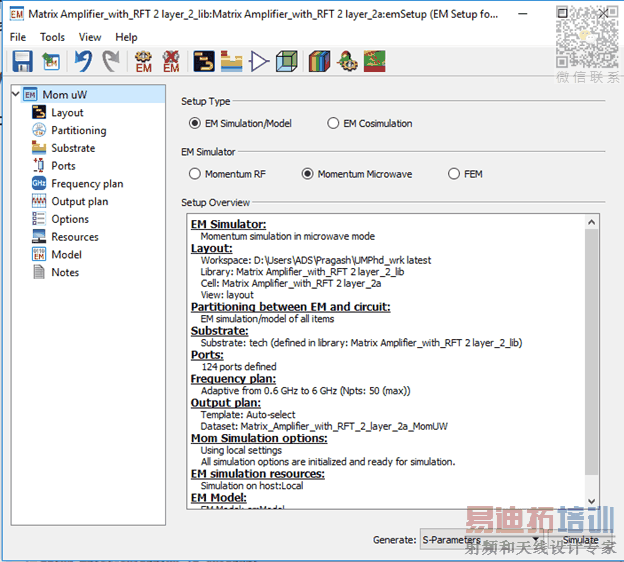

when i selected EM simulation/model instead, simulation runs like how it supposed to be.

i want to simulation the layout, and then import the layout component to the schematic to connect lumped elements and run simulation. which setup type is correct for this simulation. im thinking it should be Em co-simulation but its actually not! anyone know why?

Em Simulation/Model

and

Momentum RF

-Check your ports and make them none
- generate symbol and put a reference node and connect it to ground in schematic.

hi, im not having any problem with EM simulation/model. i'm only having problem with Em Cosimulation and i'm trying to understand why.
