[ADS] Set Port Calibration
录入：edatop.com 点击：
i supposed to set the port calibration to none but i cannot find port calibration in ADS 2017. Is port calibration is not available for latest ADS versions?

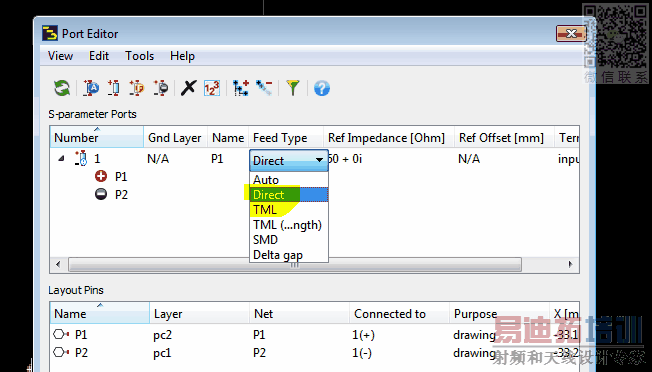

Port calibration was renamed to "Feed Type" in ADS 2017.
I think "Direct" is the new name for Port calibration off".
