Rectenna Layout on ADS
录入：edatop.com 点击：
Hi,

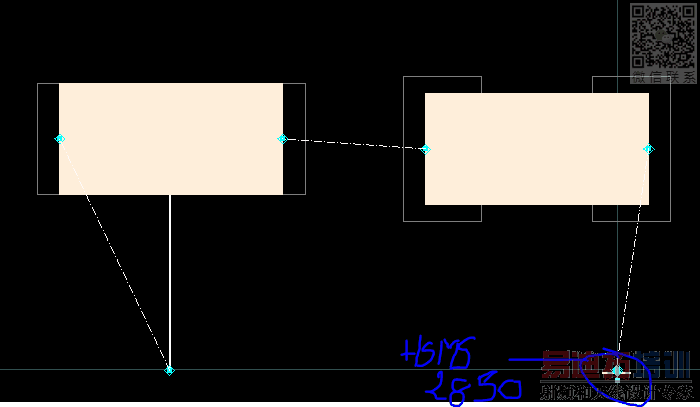

I would like to make a layout of a rectenna on ADS. I already generate the Layout through the schematic but i don't know understand how does it work, how to trace line, link elements and modify the diode size (footprint).
Lumped components are used (Murata Library).
Help me please
I would like to make a layout of a rectenna on ADS. I already generate the Layout through the schematic but i don't know understand how does it work, how to trace line, link elements and modify the diode size (footprint).
Lumped components are used (Murata Library).
Help me please
You should build your schematic with foot prints and proper netlist. Layout just transfers your compnents and Tlines netlist and attached component footprints from your schematic to layout.
Yes but i don't know how to do it.
Where can i define the footprint size on the schematic ?
