PWR fucntion error in ADS
录入：edatop.com 点击：
Hello guys,
I've imported some Hspice models into ADS.

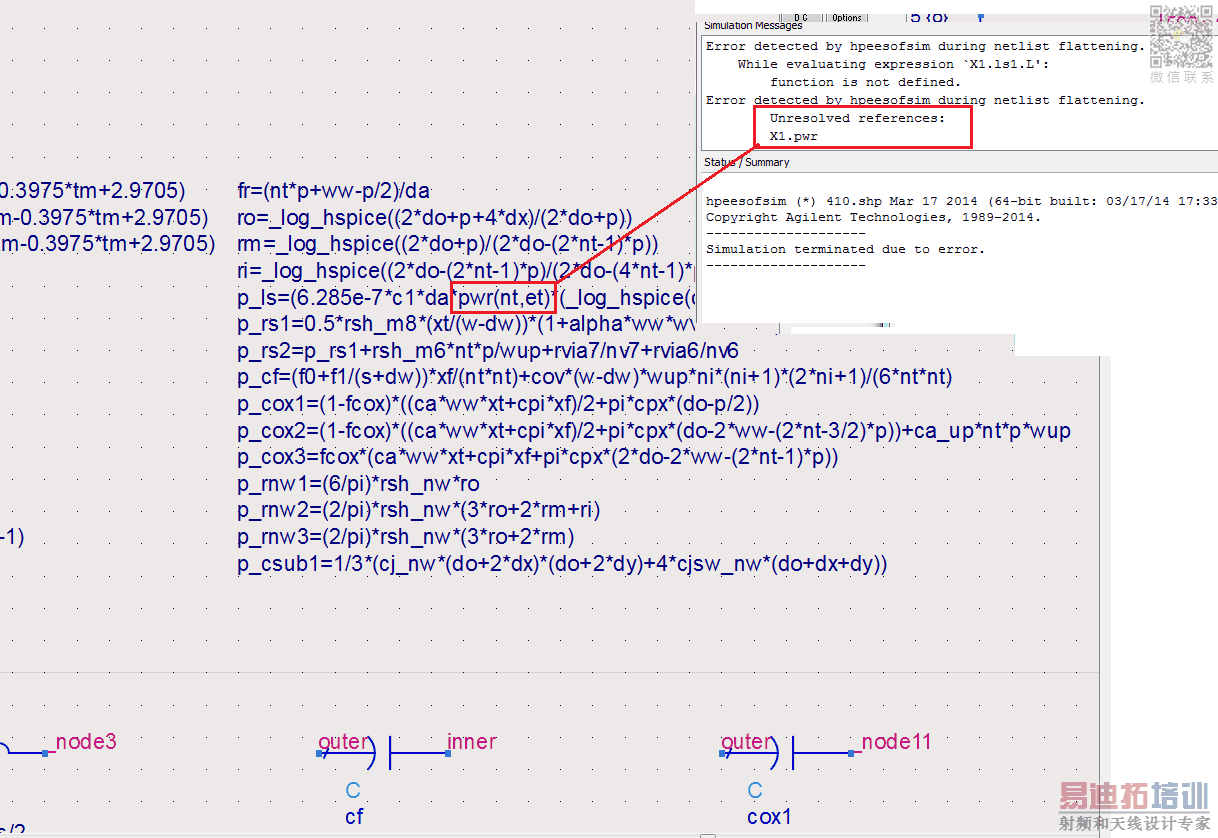

There is a function named "pwr" which ADS cannot solve it. Do you have any idea how can I redefine it?
I've imported some Hspice models into ADS.
There is a function named "pwr" which ADS cannot solve it. Do you have any idea how can I redefine it?
Replace pwr(nt, et) by _pwr_hspice(nt, et).
http://edadocs.software.keysight.com...ageId=82850567
Thank so much it worked. I appreciate.
