I am trying to import a spice file netlist from Murata into ADS; not working.

Please help me understand what is going wrong with my importing. I am trying to import a 0402 100pF capacitor from Murata into ADS. I am suppose to get a bunch of components with pins connected after the import, but I do not, I only get pin 1 and pin 2. Here are some pictures of the process I do to import the file below. Idk if it has to do with the file type (.mod file), or something is wrong with my computer. Please help when you can, thanks!

Why don't you download and install Design Kit of Murata into ADS? It's more convenient..

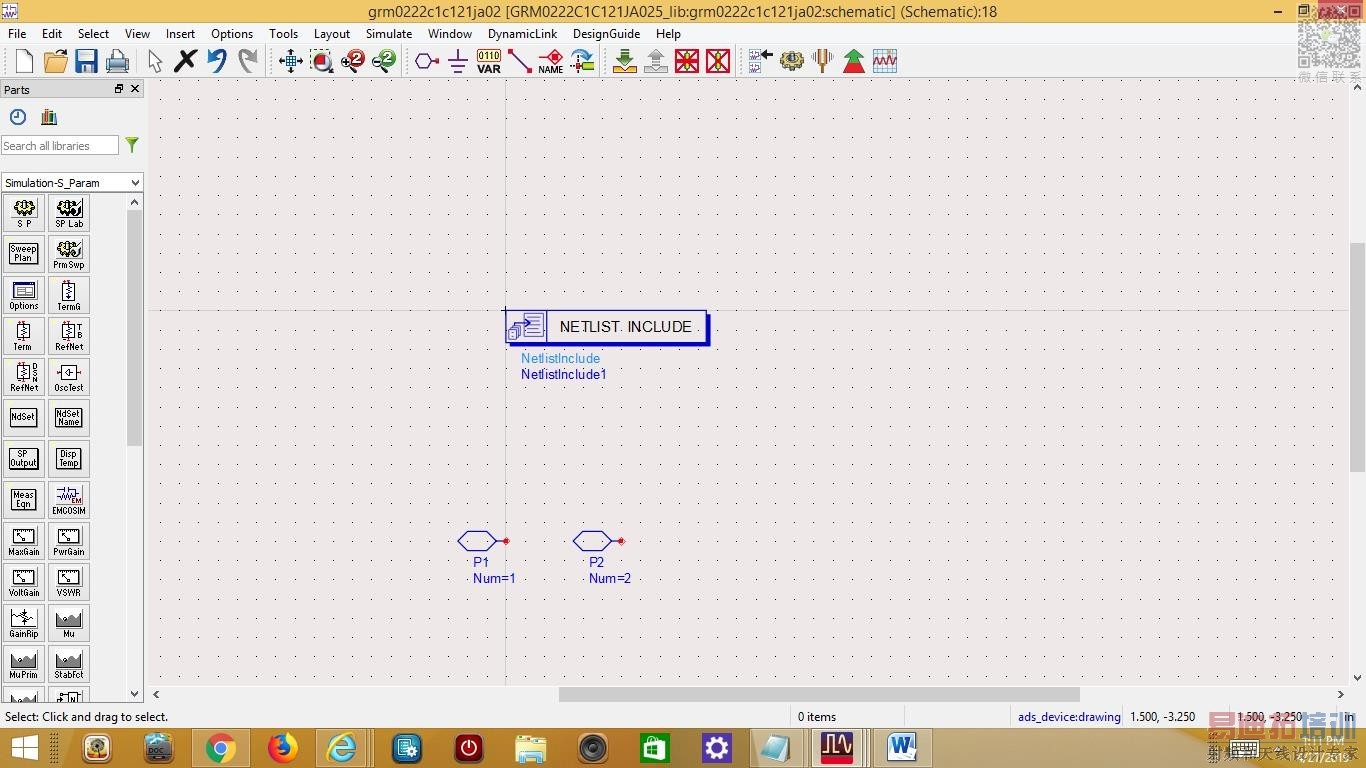

I just wanted to know why it isn't working. I had it working before, but idk what thing i did different that would show the whole netlist, all i see now is the netlist display simulator and two pins that aren't even connected to anything. Thanks though, ill try it your way if I can't figure this other method out.

Change the Option from ADS Netlist to ADS Schematic while importing..

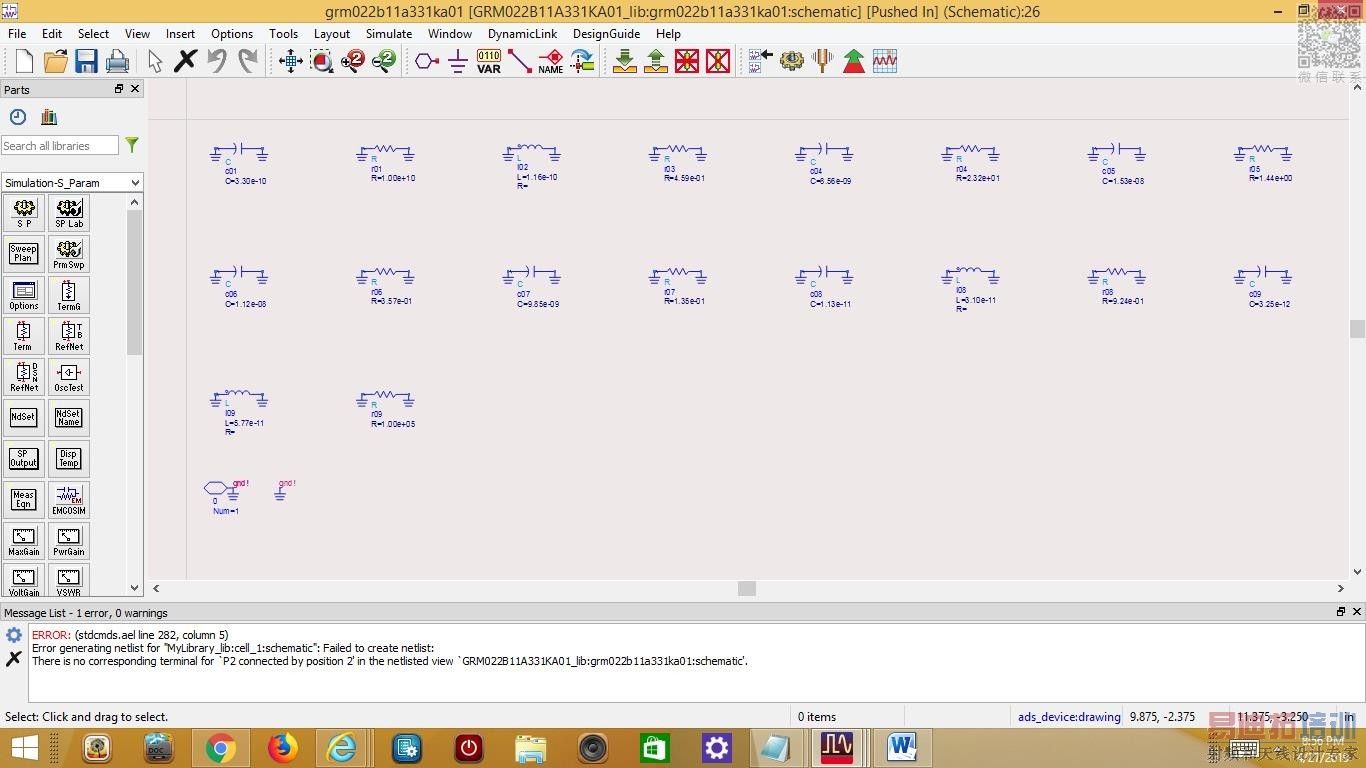

Well at least I obtained the other parasitic components, but now all the components are connected to ground as shown in the figure 1. I also get an error when I simulated the component as shown in figure 2. I was hoping your way would solve the issue, but i guess not, I get a different issue now.

never mind, I had to change the setting to PSPICE and I also changed setting to ADS schematic like you said. Thanks! :)
