How to plot gain vs frequency curve in ADS for an amplifier

kindly tell how to plot gain vs frequency curve in ADS for an amplifier.

You always show nothing.
Reconsider all your previous threads.

What analysis do you intend to do ?

well you are probably doing an AC simulation ?

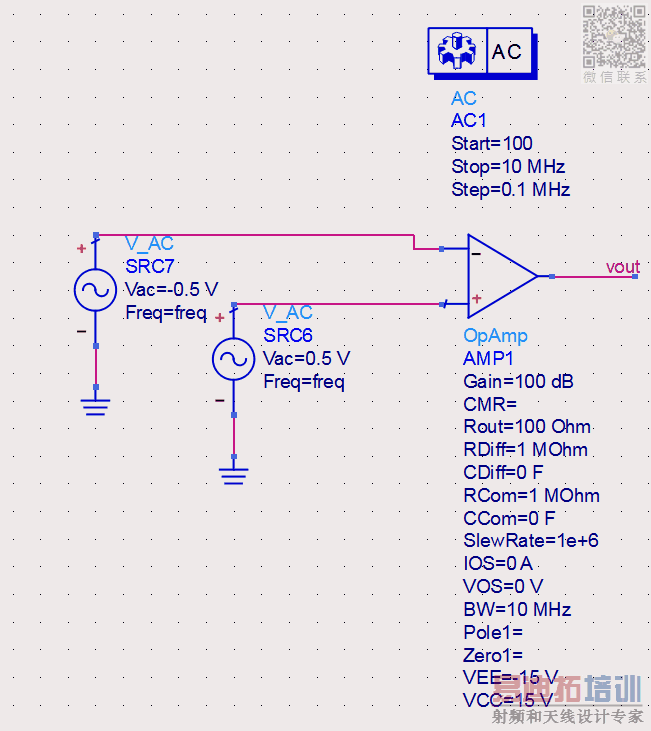

you can use this setup. I used ideal opamp you can replace it.

But if you are doing RF design like LNA you have to do s-parameter simulation and check you s(2,1)

If you are designing Power amplifier you have to check HB or Harmonic balance simulation which is a long story since you can do harmonic balance only for 1 frequency.
