layout of one end joined coupled line (in ADS)

Hi,

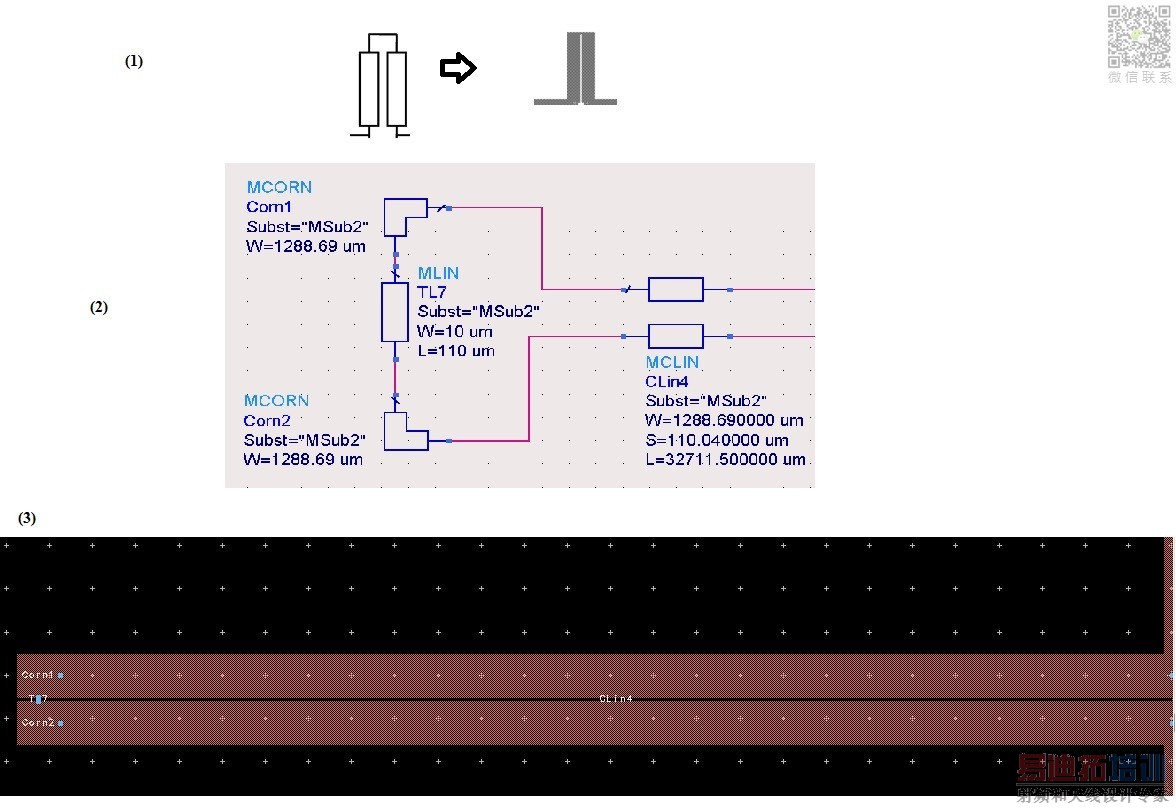

I have a coupled line section joined at one end as shown in part(1) of the attached figure. It also shows the corresponding layout.
To mimic this, I made a setup as shown in part(2) of the figure. Part(3) shows the corresponding layout generated by ADS. And it doesn't matches with that shown in part (1).
Kindly help me out to figure out the mistake.
This is my first ever coupled line layout.

Thanks in advance.

Hi
why don't you directly use ADS momentum for your work?
I mean directly use momentum and draw in the layout..

Thanks Jamal, I automatically generated layout from schematic (without joining the ends) and in the layout window I connected them manually. I don't know much about manual layout. It would be great someone could share some tutorial .

You're welcome buddy.

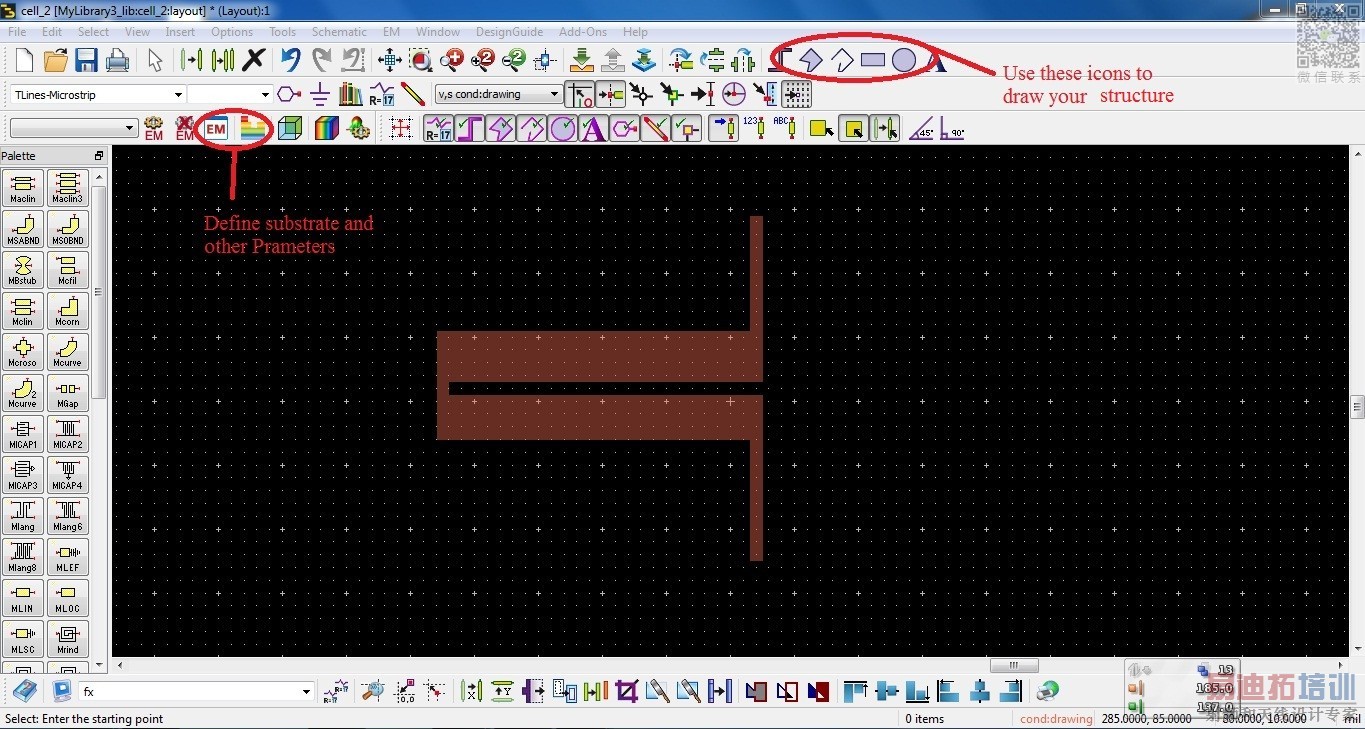

If you go in layout section of ADS you can easily draw your structure, attached file is a very short tutorial, you can find more through its help and some useful videos...

Very kind of you, thanks. This hint is going to help me a lot.
