Regarding Series Stub Matching in ADS
录入：edatop.com 点击：
Dear Friends,
I am designing matching networks at 2.45 GHz. I am using ADS software.
I want to make use of series stub matching in my design.
But i am not able to find it in ADS schematic.
please help me so that i could do it.
I am designing matching networks at 2.45 GHz. I am using ADS software.
I want to make use of series stub matching in my design.
But i am not able to find it in ADS schematic.
please help me so that i could do it.
Can you show an example of a series stub layout?

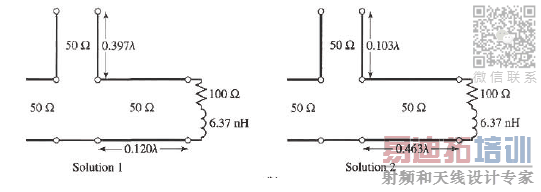

yes, please find the attached picture.
I meant an example of the layout implementation.
