ADS Momentum mlin layer
录入:edatop.com 点击:
Hi
I have made a new component in ADS Momentum. I made it from a few Mlin (microstip line) and every thing is good.
The only problem is that I need to put some instances of this component in different layers. But I can not change the component layer.
Even I tried to change the layer of a simple Mlin in ADS Momentum but it seems there is no option to move it to any other layer than "cond" layer.
Can anyone help me, pleeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeez.
Cheers.
I have made a new component in ADS Momentum. I made it from a few Mlin (microstip line) and every thing is good.
The only problem is that I need to put some instances of this component in different layers. But I can not change the component layer.
Even I tried to change the layer of a simple Mlin in ADS Momentum but it seems there is no option to move it to any other layer than "cond" layer.
Can anyone help me, pleeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeez.
Cheers.

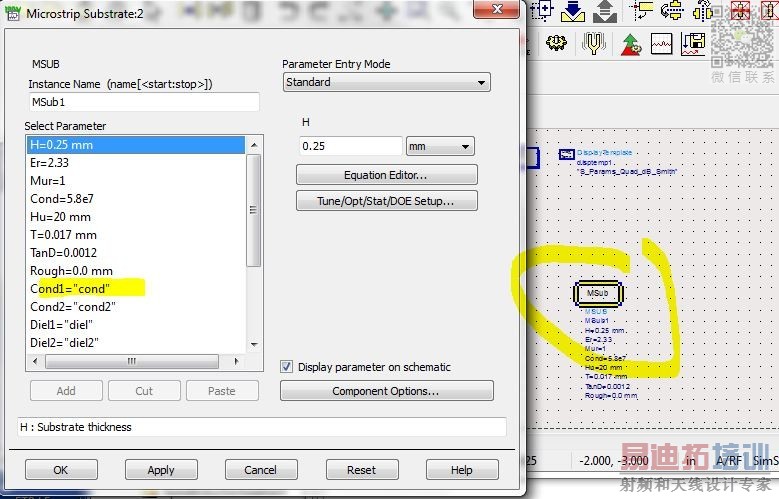

Your MLIN points to a substrate definition (MSUB). The drawing layer is defined in the MSUB block.
