ADS2017如何在原理图上显示各个节点电压电流

11版本是通过simulation>Annotation DC Solution

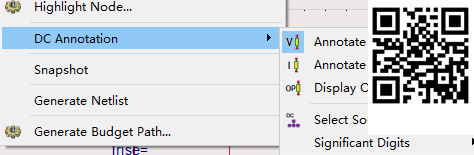

17版本变成了这

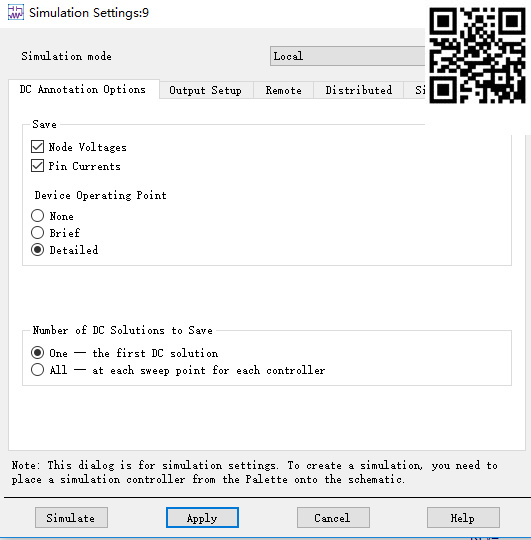

我在simulation setting里做了相关设置

即使用最简单的电路，出来的总是
No DC annotation information is available for this design.
        1. If this design is a top-level design that can be simulated,
            run the simulation to produce the DC annotation information.
            If you've run a simulation and there is still no DC annotation
            information available, it is most likely because the DC solution
            is not available when running an S-Parameter or AC simulation on
            a purely linear circuit.
        2. If this design is not a simulatable design, go to the top-level,
            simulatable design and push down into this design using the
            'View : Push into Hierarchy' command or the 'Push into Hierarchy'
            button on the toolbar.
求帮助，若能解答，可分享ADS2017版本

我是沒碰過這樣的情形, 一般來說都是仿真電路中有遺漏一些元件, 但由於您提供的資訊不夠, 可否貼出仿真電路以方便問題釐清.

insert -pin label,设置节点名

设置节点吧，和老板不一样吗，没用过2017
