Microwave Office Axiem include capacitors etc.

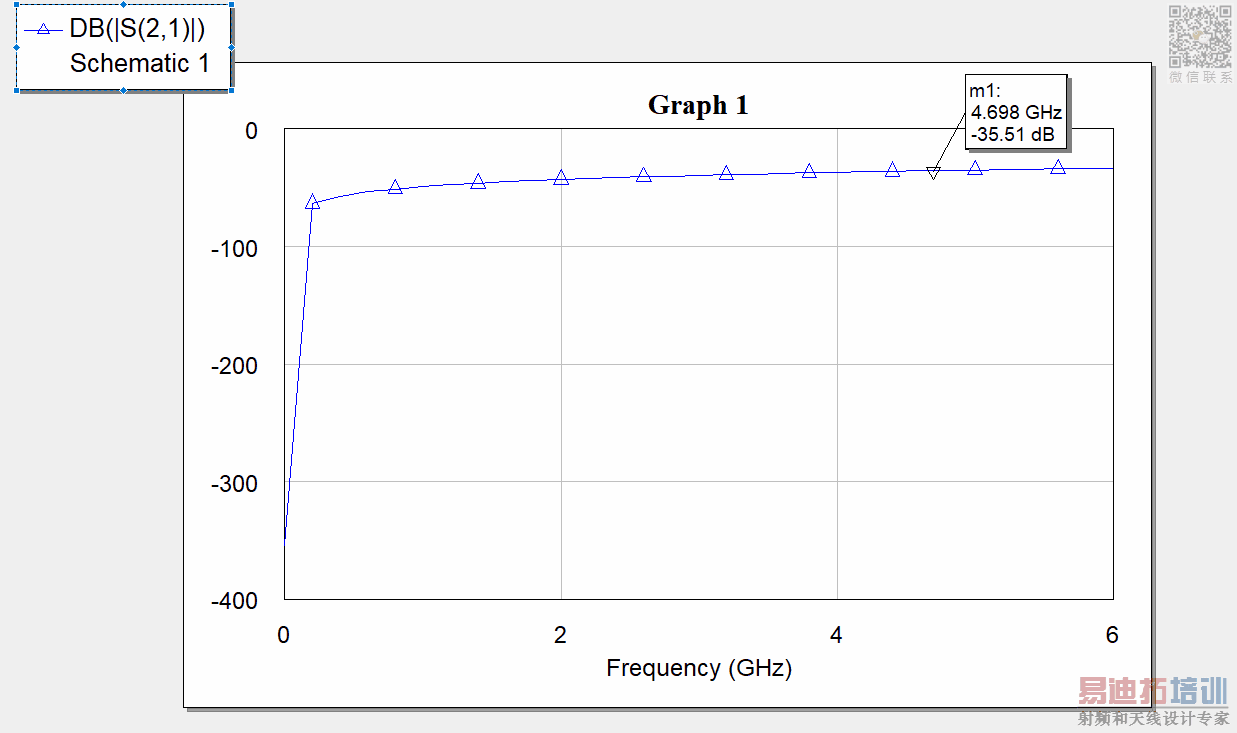

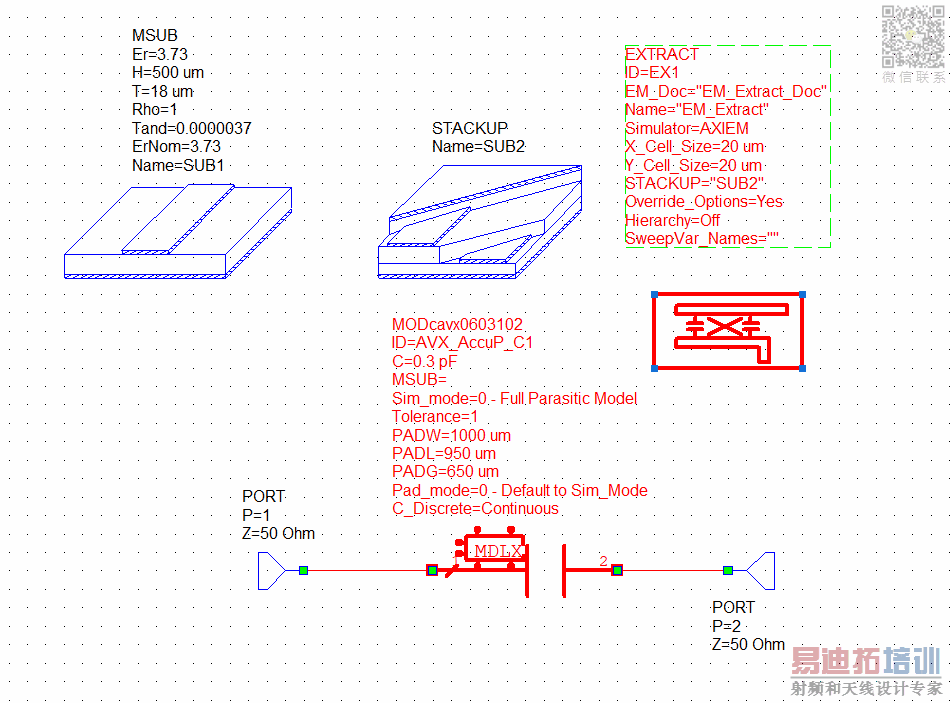

I want do simulate a diplexer with the axiem simulator. My problem is, that I also need to use a capacitor and a resistor in the design. This works well in the schematic simulation, but produces strange results with the axiem simulator. The S21 attenuation is much to high. I'm using models from the modelithics library. Another strange thing is, that the software immediately shuts down, when I click on 3D EM view. What am I doing wrong? I use Version 14.

Because EM Simulators Do Not Recognize Electronic Components.You have to place 2-Ports for Cap. then obtain symbol from the layout.
You can use it later on this view in a separate schematic simulation view.

Thanks for the answer.
Do you have a more detailed instruction for this?

Help Documents of AWR..
http://kb.awr.com/display/HELP/Documentation#gsc.tab=0
