How to Read External Datafiles in AWRDE

I want to call a datafile that exists on my PC in AWRDE.

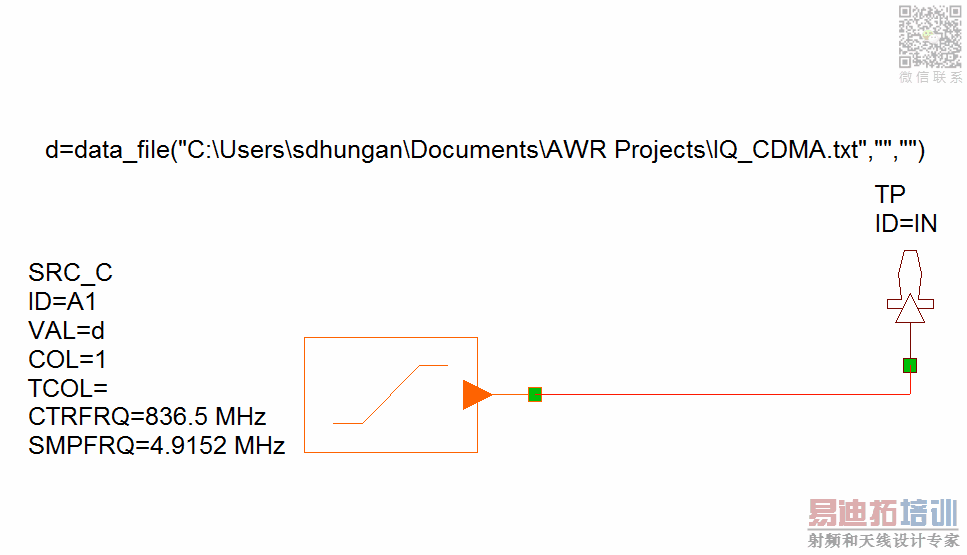

In AWRDE, you can reference external data files by using the function data_file. Below is an example of a VSS system diagram where it is referencing an external datafile named IQ_CDMA.txt to feed the source. The data file in this example contains two columns, the "I" and the "Q" values.

?

If the datafile exists in the same location as where your project is, you do not need to put the full path of the datafile in the data_file function.
