HFSS15: CAD Integration Functionality

CAD Integration includes the following functionality.

• DX analysis

WB Update Project

WB Update All Design Points

• Parametric analysis with DSO

• Animation

• Geometry

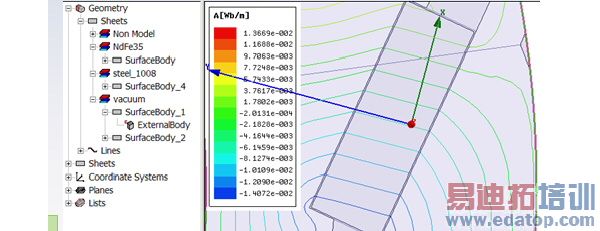

• Field plots

For Explicit Subtraction

• ANSYS Mechanical does not do implicit subtraction

• ANSYS Electromagnetics modeler command Modeler>Model Preparation>Perform Explicit Subtraction can do explicit subtractions before sending geometry to ANSYS.

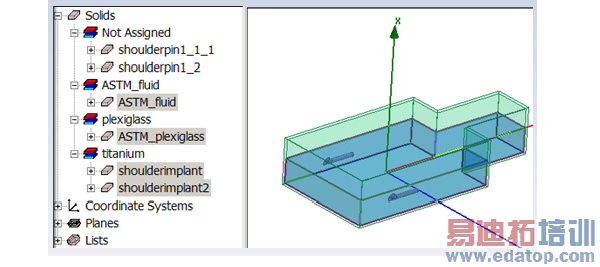

For example, consider the following model.

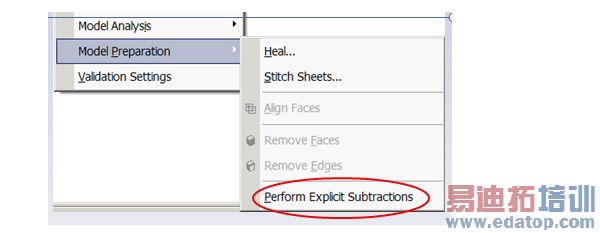

Perform Explicit Substraction can be performed.

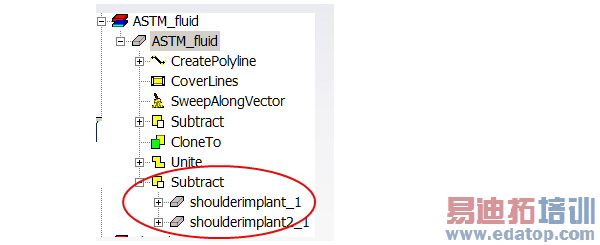

The results appear in the History tree as shown:

The Message window reports this action.
