HFSS15: Assigning Frequency Dependent Material: Piecewise Linear Input

Having selected Piecewise Linear Input as the model for the frequency dependent material property, you enter the required values in the dialog displayed:

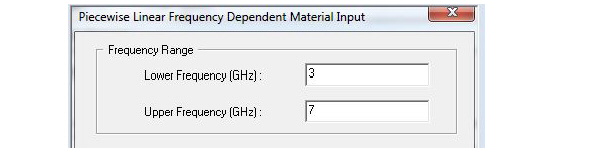

1. Enter Upper and Lower Frequency Range.

HFSS assumes that the material’s property values remain constant for frequencies below the Lower Frequency and above the Upper Frequency.

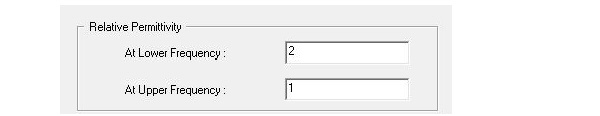

2. Enter the Upper and Lower Relative Permittivity of the material.

If the permittivity of the material does not vary with frequency, enter the same value you entered for the permittivity’s lower frequency.

3. Follow the same procedure for entering values for permeability, dielectric loss tangent, and magnetic loss tangent.

The example of a high value for dk (low value for loss tangent) at low frequency and a lower value for dk (higher value for loss tangent) at some higher frequency is intended to roughly simulate how material should behave with reference to frequency for a causal model.

After you have entered the data for your selection, you return to the View/Edit Material window. New default function names appear in the material property text boxes. HFSS automatically created a dataset for each material property. Based on a varying property’s dataset, HFSS can interpolate the property’s values at the desired frequencies during solution generation.

To modify the dataset with additional points, see Modifying Datasets.
