HFSS15: Fast Frequency Sweeps

A Fast sweep generates a unique full-field solution for each division within a frequency range. Choose a Fast sweep if the model will abruptly resonate or change operation in the frequency band. A Fast sweep will obtain an accurate representation of the behavior near the resonance.

HFSS uses the center frequency of the frequency range to select an appropriate eigenvalue problem with which to generate a solution for the entire Fast sweep. It then uses an Adaptive Lanczos-Padé Sweep (ALPS)- based solver to extrapolate the field solution across the requested frequency range from the center frequency field solution.

HFSS always uses the middle of the frequency range and the center frequency.

Be aware that HFSS uses the finite element mesh refined during an adaptive solution at the solution frequency or, if you did not request an adaptive solution, the initial mesh generated for the problem. It uses this mesh without further refinement. Also, the field solution at the center frequency is the most accurate. Depending upon the desired level of accuracy you require throughout the frequency range, you may wish to perform additional Fast sweeps at other center frequencies.

The full-field solution is saved only at the center frequency, while the S-parameters are saved for every frequency point; however, the Fast sweep allows the you to post process fields for any frequency entries to the sweep range.

The time and memory required for a Fast sweep may be significantly greater than the time and memory required for a single frequency solution.

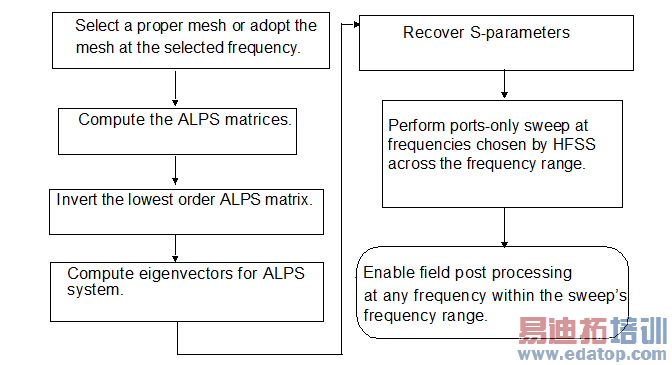

The procedure for a Fast frequency sweep is shown below.
