HFSS15: Exporting Ansoft Report Data Format Files

Ansoft Report Data format files provide a way to export reports or report formats, which you can then import using Reports>Create Report From File. This can save repeated editing of properties (for example, the company name, or color schemes) when you create other reports. You must have an existing plot open to see the Report2D menu.

1. Click Report2D>Export...

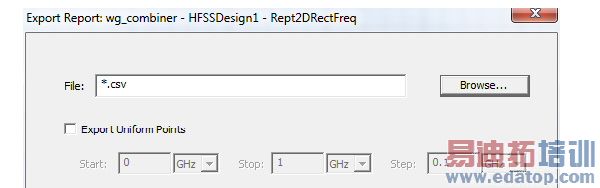

The Export Report dialog box appears.

2. If you check, Export Uniform Points, the rdat file will contain the points for the given start, stop, and step at the given frequencies. If you do not, the file contains only the current file format, including any modifications you have applied.

3. Use the file browser to find the directory where you want to save the file.

4. Type the name of the file in the File box.

5. Select the Ansoft Report Data (.rdat) file formats from the Save as type pull-down list:

6. Click Save. The file is exported to the specified location as an Ansoft Report Data file.

The file will then be available for import using Create Report from file. If you
