HFSS15: Example of Terminals
录入：edatop.com 点击：
A terminal is essentially an insertion point for voltage and current on a multitrace transmission line.

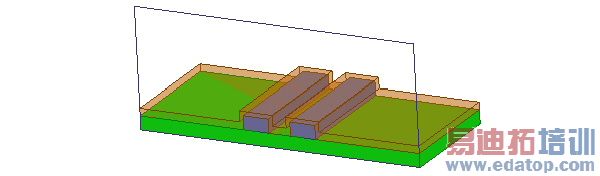

An HFSS model of a coupled microstrip transmission line is shown below.
The terminals are defined at the ends of the signal traces where they intersect with the surface of the port as shown below.
