HFSS15: Floquet Port: Post Processing

This tab lets you specify a de-embedding distance. This optional post processing step is employed when you are interested in the phase of the Sparameter elements. The interface for deembedding a Floquet port is the same as that for a Wave port.

This panel contains settings that affect the fields once the field solution is complete.

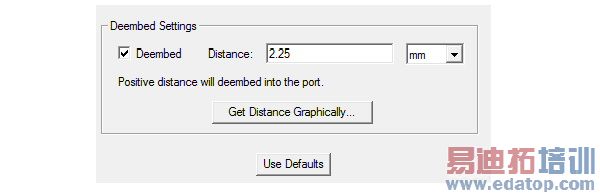

This enables the distance and units field for the positive value to deembed the port into the mode, and for a negative value to deembed the port out of the model.
