HFSS15: Integrated Job Monitoring for Job Management Interface for LSF

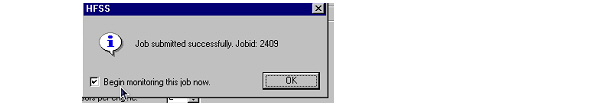

The job monitoring/control dialog is launched through the command Tools>Job Management>Monitor Jobs... or by checking Begin monitoring this job now in the information window reporting successful job submission.

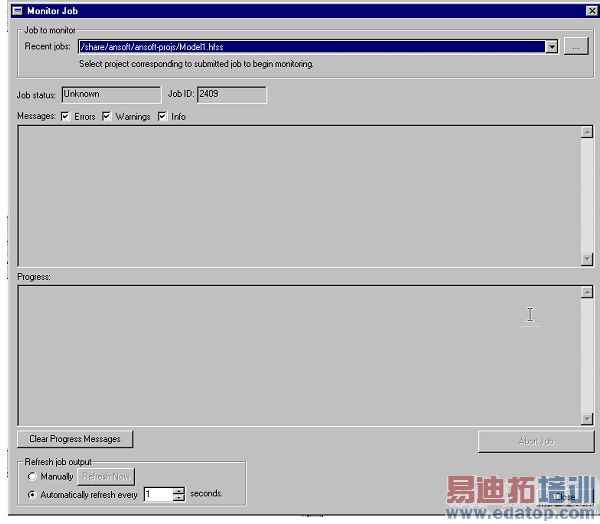

In response to either invocation, the Monitor Job dialog opens:

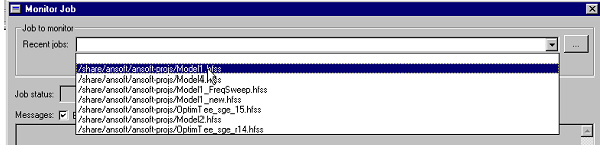

In this dialog, user selects the same project they submitted. You begin by selecting the job to monitor from a pull down list of recent jobs.

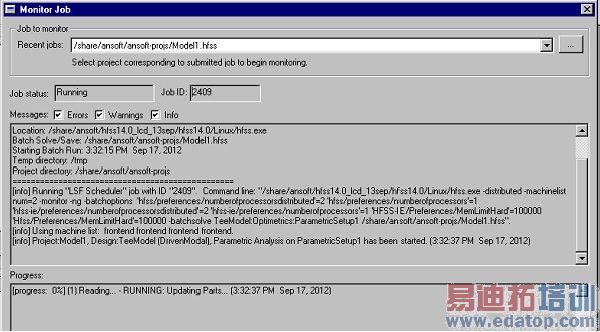

The lower left has corner of the dialog has options for manual refresh or to Automatically refresh every specified number seconds. After refresh, the messages for the job are displayed. The format of the text is essentially same as output of the '-monitor' command-line option.

If desired, you can use the check boxes to filter the messages listed in terms of whether to monitor Errors, Warnings, or Info messages.
