HFSS15: Named Probes and Properties in User Defined Outputs

录入:edatop.com     点击:

UDOs allow processing data across traces, solutions and report types. A UDO specifies the named probes and properties for which user selects/enters the values at the time of creation of user defined solution. Probes are very similar to traces except that the user selects the values of only intrinsic variables for probes. The values of design/project variables are selected when a trace is created based upon the user defined solution in reporter.

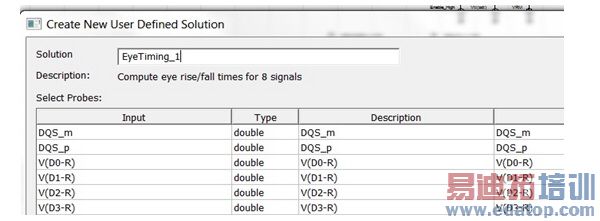

For example, you could create a user defined solution called EyeTiming_1.

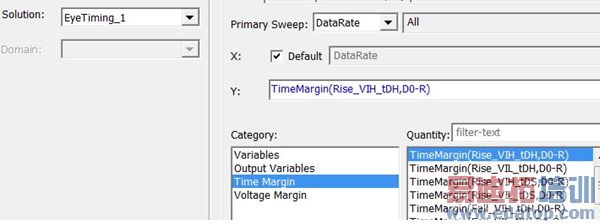

You can then access this solution in the Reporter.

Related Topics

User Defined Outputs: An Introduction

Computation of Traces Based UDO Calculations

Dimensions Reduction by UDO Calculations

Dynamic Probes
