HFSS15: Setting Default Boundary/Excitation Base Names

To change the default boundary or excitation base names, so that subsequent names increment from the base of your choosing:

1. Click Boundary>Set Default Base Name or Excitation >Set Default Base Name.

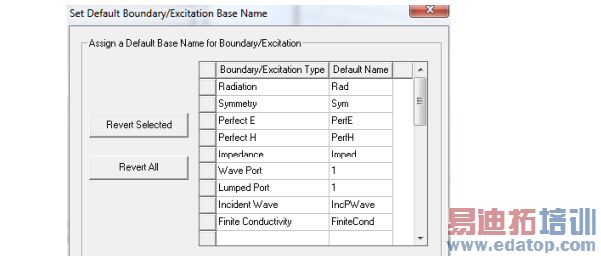

This displays the Set Default Boundary/Excitation Base dialog. This contains a list of all boundary and excitation types, and the base names for each. The base names for each type have editable text fields. The base names for boundaries and excitations are incremented from the base names here.

2. Edit the text fields to your preferred naming conventions. Names must be less than sixty characters and cannot include spaces. Letters, numbers, and special characters are permitted. Illegal names are not accepted and generate a warning message.

3. Click OK to accept the changes or Cancel to close the dialog without accepting changes.

If you want to revert all or selected names to defaults, use the Revert All or Revert Selected buttons.
