HFSS15: Selecting the Report Type in HFSS Transient

Creating a Report in HFSS Transient differs from standard HFSS in Solution selections. If the Solution Type is Transient, the Solution Context is Transient. If the Solution Type is Transient Network Analysis, you can also select Spectral.

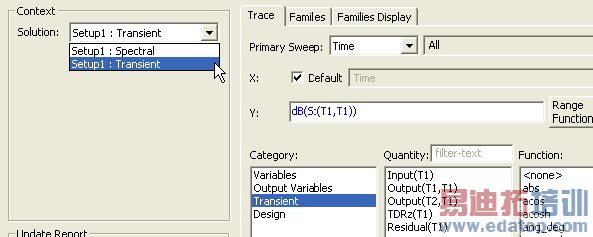

With Transient selected, the Quantities include Input and Output related to the terminals in your design, as well as TDRz and Residual.

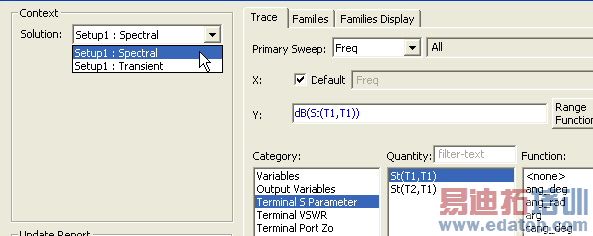

For Transient Network Solution type designs, if you select Spectral, the Category and Quantity lists offer different selections:, including Terminal S Parameters, VSWR, and Port Zo.

Related Topics

Creating Reports

Reports for Transient Network with Differential Pairs
