HFSS15: Setting Magnitude and Delay for Transient Composite Solution Excitations

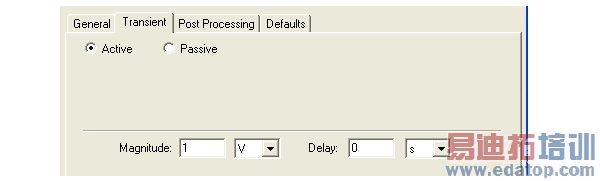

In HFSS Transient Composite Excitation solutions, each excitation (port, plane wave, voltage, or current source) can be given a Magnitude and Delay.

For Transient:

• Scaling and delay time can be set on the input signal for each excitation. This appears only in Transient Composite Solution, not Network Analysis. Scaling is a unitless multiplier, and delay time is in appropriate time units.

• Changing scaling or delay time will invalidate solutions.

• Scaling and time delay are passed to the solver and used for the simulation.

• Legacy projects set the scaling to 1 and time delay to 0. These are also used as the defaults.
