Specifying Solution Settings

Specify how HFSS or HFSS-IE will compute a solution by adding a solution setup to the design. You can define more than one solution setup per design.

Each solution setup includes the following information:

• General data about the solution’s generation.

• Adaptive mesh refinement parameters, if you want the mesh to be refined iteratively in areas of highest error.

• If you want to solve of a range of frequencies, you can add a frequency sweep.

What do you want to do?

Add a Solution Setup to an HFSS Design

Add an Solution Setup to an HFSS-IE Design

Add a Solution Setup to an HFSS Transient Design

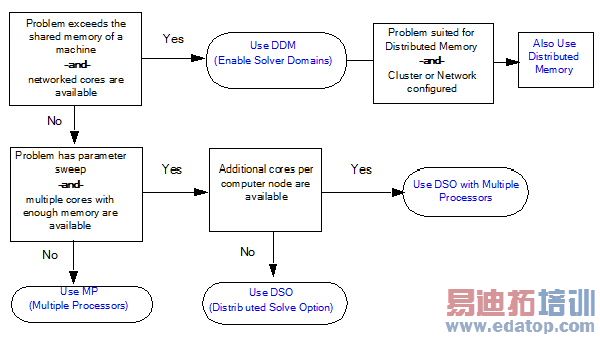

For large problems, depending the whether the solution involves a parameter sweep and your resources of shared machine memory, networked cores and cores per computing node, you can configure for different high performance computing solutions:

Additionally, a command line Large Scale DSO is used for 'large scale parallel' jobs, which either fail or scale poorly as Regular DSO jobs. A Large Scale DSO job does not support the output of full parametric results, but produces 'reduced' datasets corresponding to predefined Rectangular plots.
