HFSS15: Single Frequency Solution

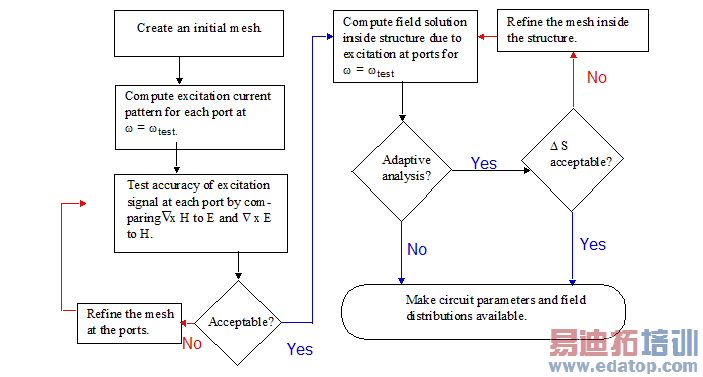

A single frequency solution generates an adaptive or non-adaptive solution at a single frequency, the solution frequency specified in the Solution Setup dialog box, and is often the first step in performing a frequency sweep. An adaptive solution is one in which a finite element mesh is created and automatically refined in the areas of highest error — increasing the accuracy of succeeding adaptive solutions. The procedure for performing a single frequency solution is shown below.
