HFSS15: Working with the History Tree

Invalid

Lists all invalid objects

Objects

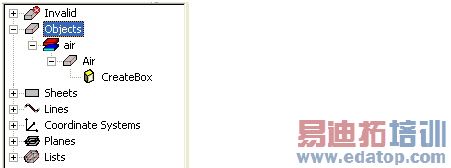

Displays all the model’s objects and a history of the commands carried out on each object. By default HFSS groups objects by material. you can change this by selecting the Objects icon in the history tree and right-click to display the shortcut menu with the Group Objects By Material checkbox.

Sheets

Displays all the sheets in the model 3D design area. By default, HFSS groups sheet objects by boundary assignment. You can change this by selecting the Sheet icon in the history tree and right-click to display the shortcut menu with the Group Sheets by Assignment checkbox.

Lines

Displays all line objects included in the active model.

See Drawing a Straight Line for information on how to draw a line object.

Points

Displays all point objects included in the active model.

See Drawing a Point for information on how to draw a point object.

Coordinate Systems

Displays all the coordinate systems for the active model.

See Setting Coordinate Systems for more information on this model detail.

Planes

Displays the planes for all the coordinate systems. When you create a coordinate system, default planes are created on its xy, yz, and xz planes.

Lists

Displays the object or face lists for the active model. By default, a list called "AllObjects" appears.

Creating an object list is a convenient way to identify a group of objects for a field plot or calculation.

Creating a face list is a convenient way to identify a specific set of surfaces for a field plot or calculation.

See Creating an Object List
