Ansys Maxwell到HFSS场链接

步骤 1: 用户在"Project1 - HFSSDesign1 - Modeler (窗口)"上右键单击(在"ANSYS Electronics Desktop - Project1 - HFSSDesign1 - 3D Modeler - [Project1 - HFSSDesign1 - Modeler]"中)

步骤 2: 用户在"Near Field... (菜单项目)"上左键单击

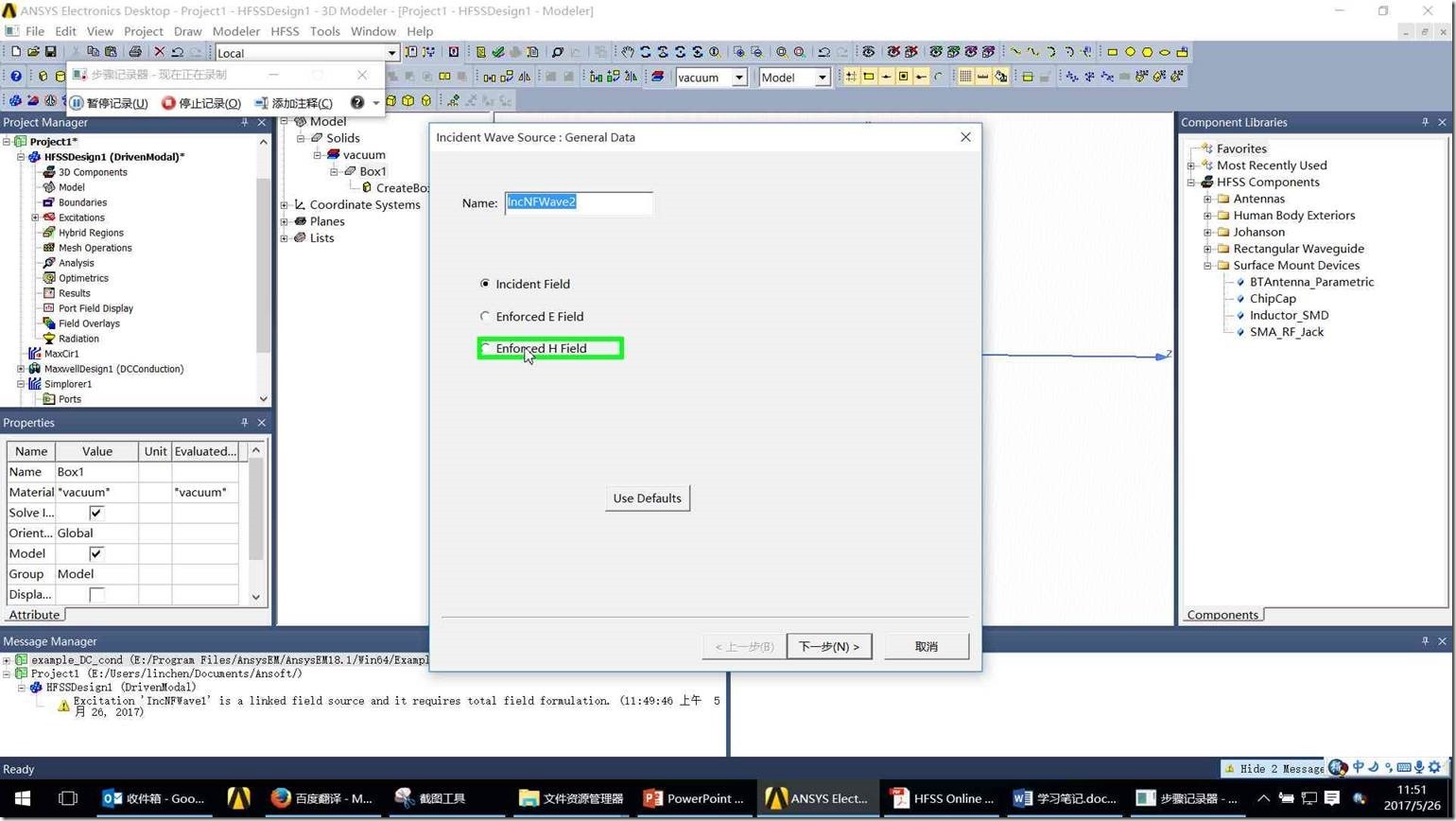

步骤 3: 用户在"Enforced H Field (单选按钮)"上左键单击(在"Incident Wave Source : General Data"中)

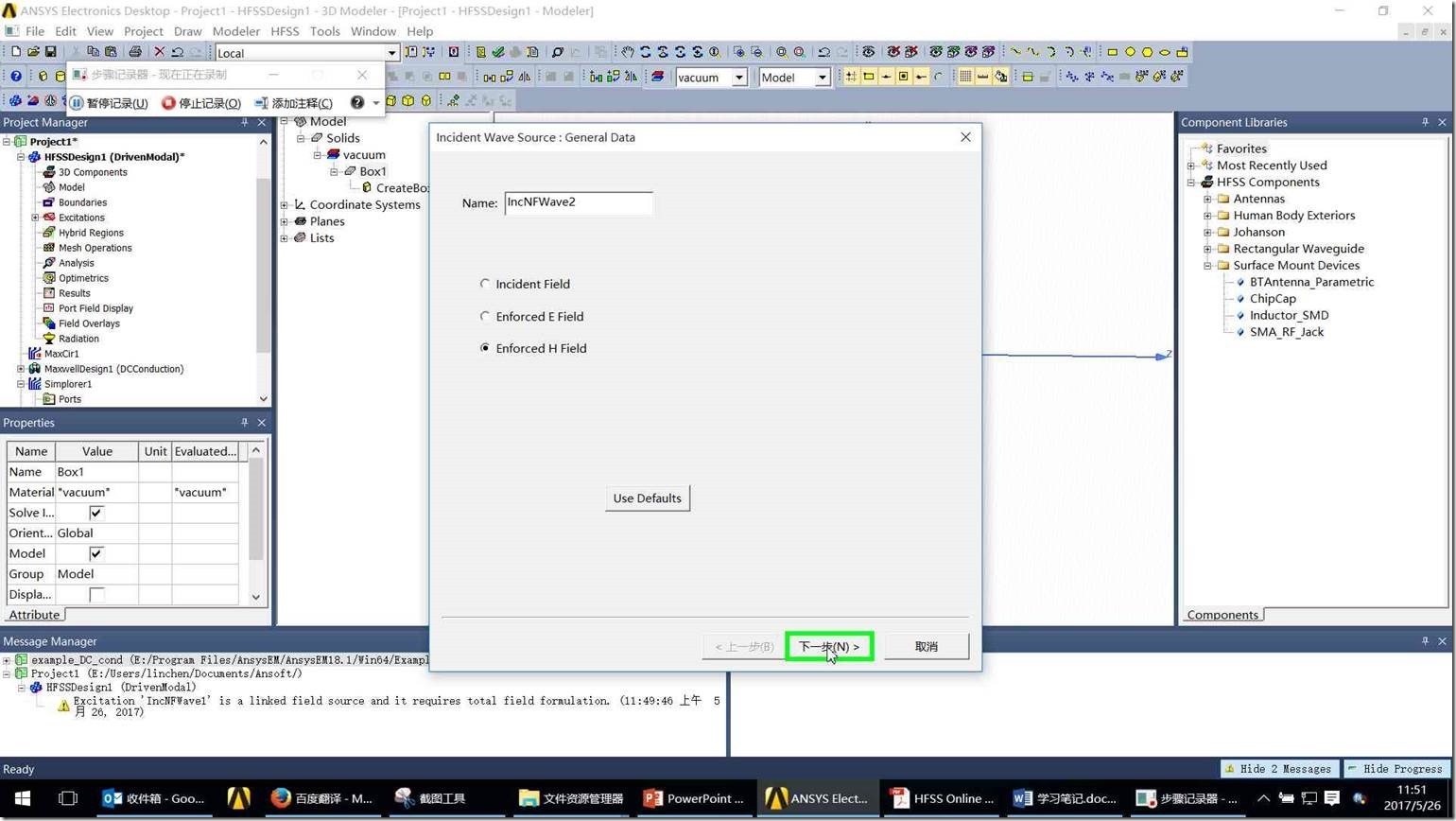

步骤 4: 用户在"下一步(N) > (按钮)"上左键单击(在"Incident Wave Source : General Data"中)

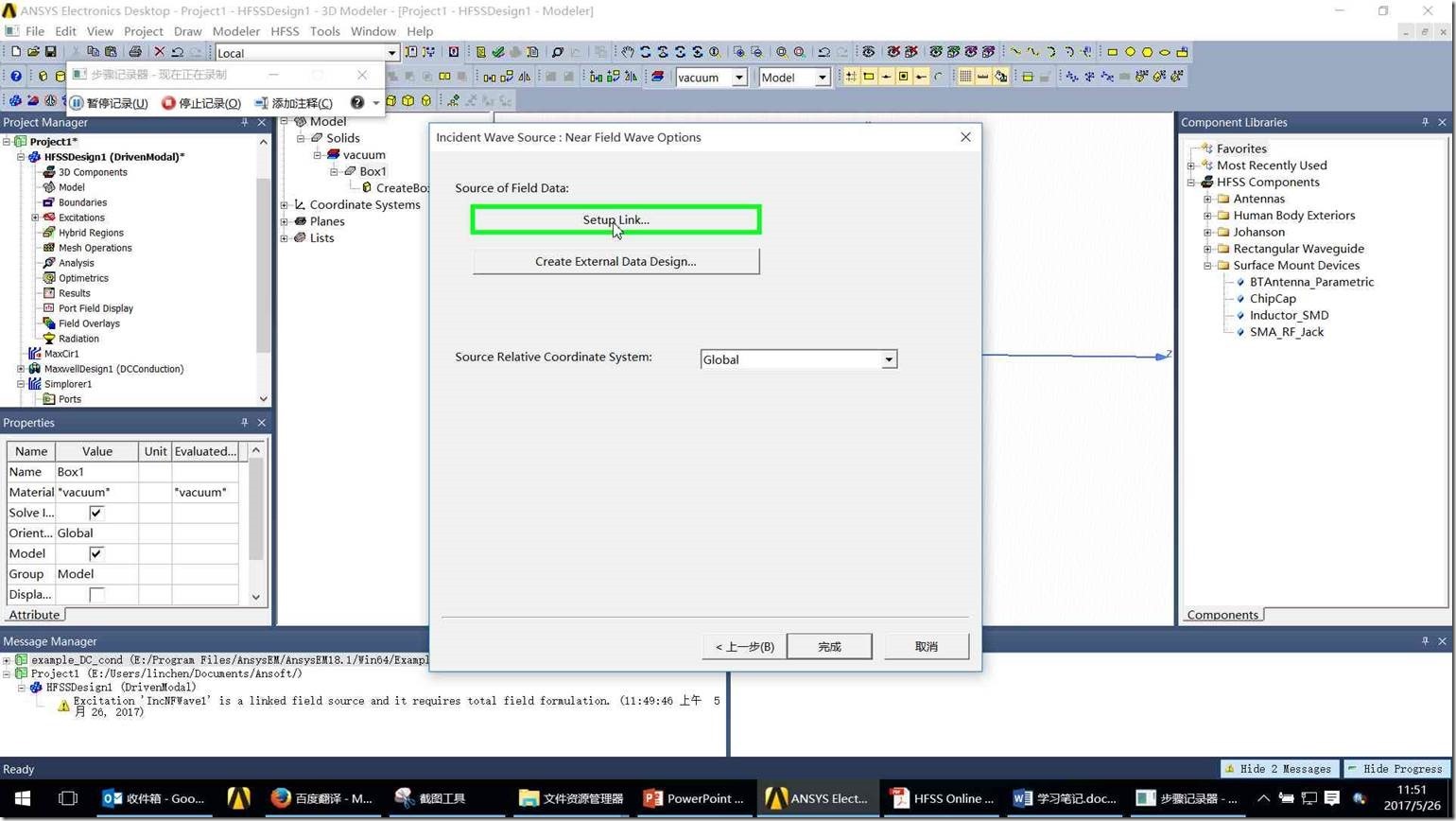

步骤 5: 用户在"Setup Link... (按钮)"上左键单击(在"Incident Wave Source : Near Field Wave Options"中)

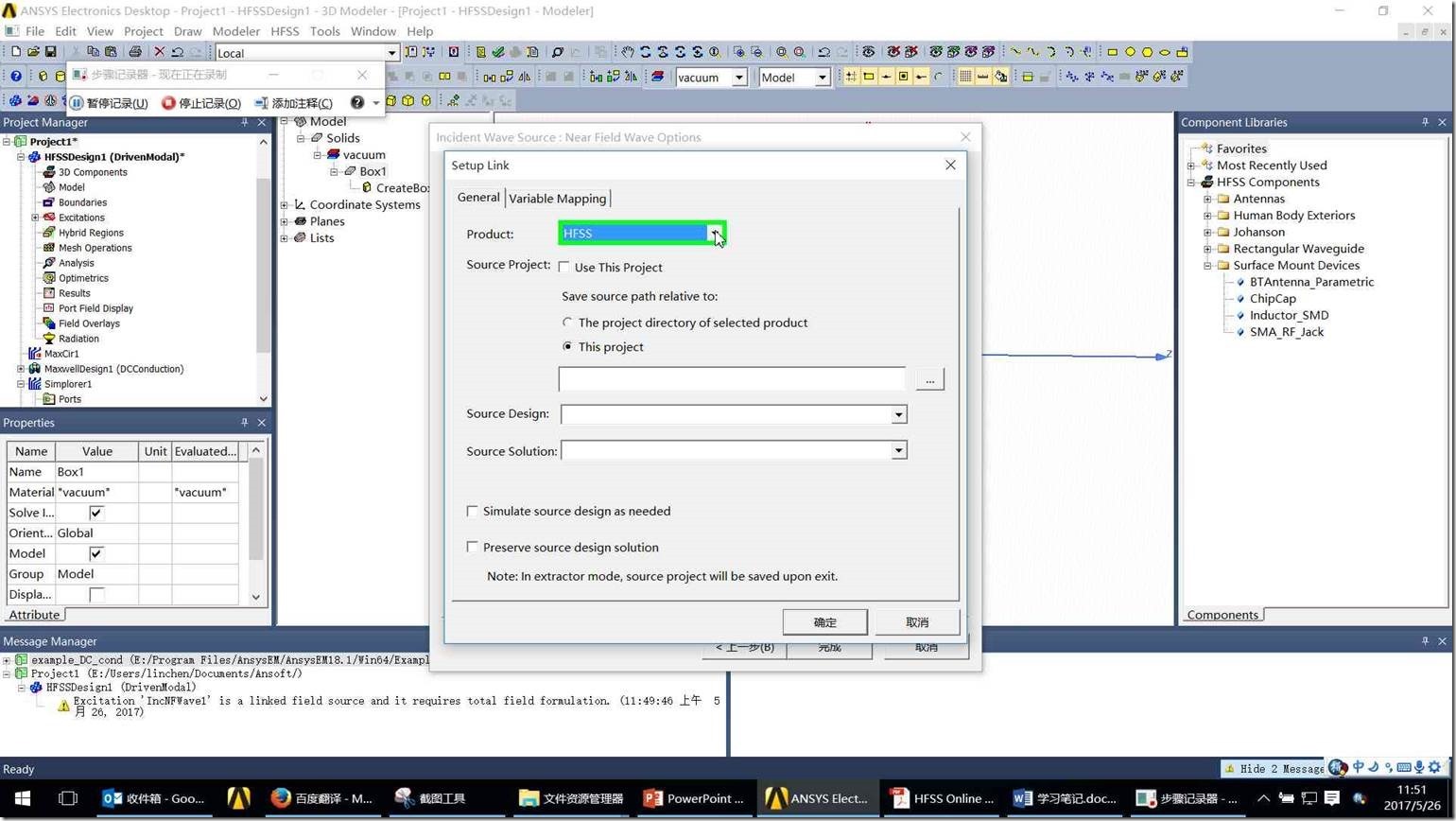

步骤 6: 用户在"打开 (按钮)"上左键单击(在"Setup Link"中)

步骤 7: 用户在"Maxwell (列表项目)"上左键单击

步骤 8: 用户在"Use This Project (复选框)"上左键单击(在"Setup Link"中)

步骤 9: 用户在"确定 (按钮)"上左键单击(在"Setup Link"中)

步骤 10: 用户在"完成 (按钮)"上左键单击(在"Incident Wave Source : Near Field Wave Options"中)
