lumped port设置
录入：edatop.com 点击：

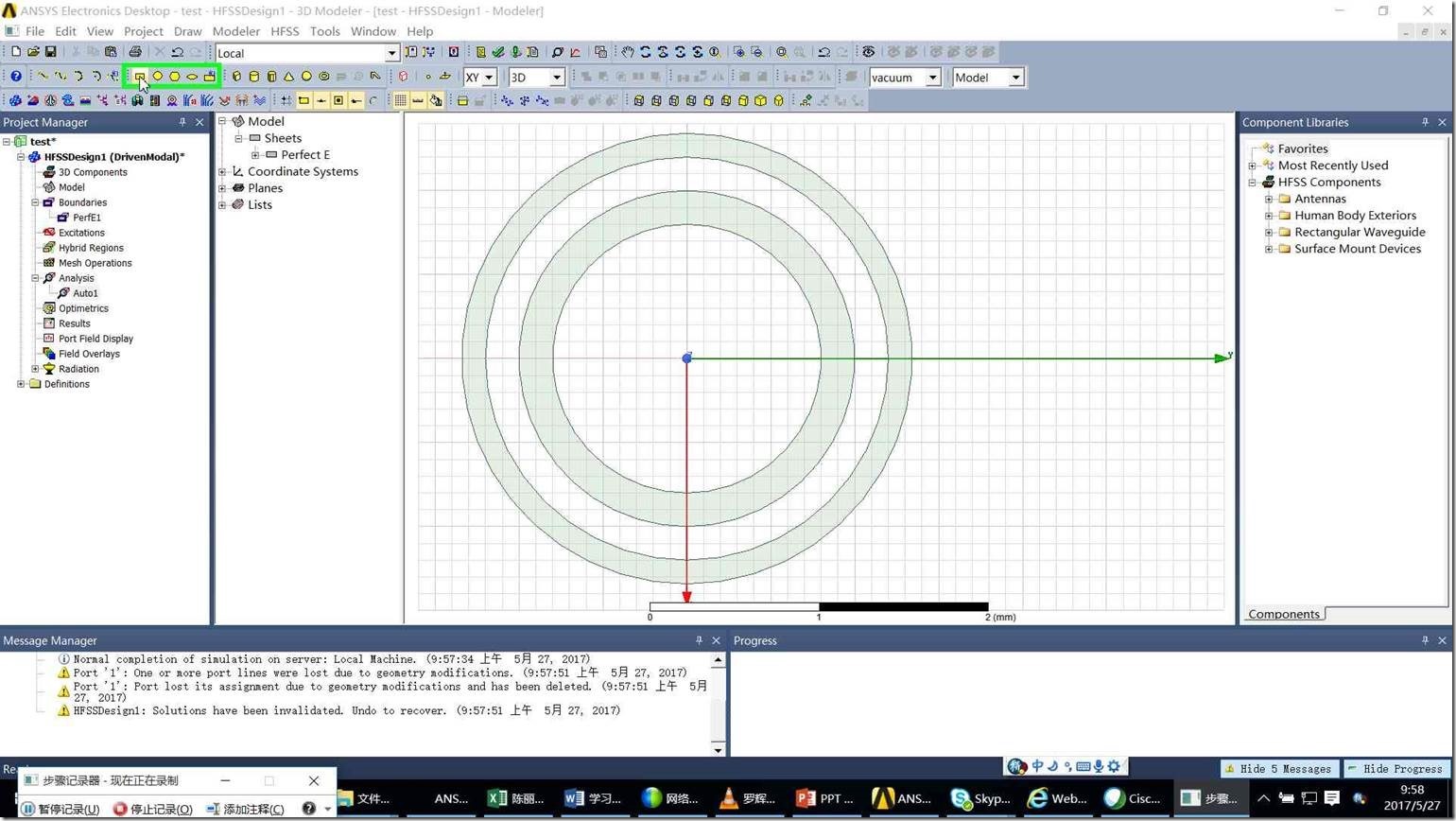

步骤 1: 用户在"Draw rectangle (按钮)"上左键单击(在"ANSYS Electronics Desktop - test - HFSSDesign1 - 3D Modeler - [test - HFSSDesign1 - Modeler]"中)
步骤 2: 用户在"test - HFSSDesign1 - Modeler (窗口)"上左键单击(在"ANSYS Electronics Desktop - test - HFSSDesign1 - 3D Modeler - [test - HFSSDesign1 - Modeler]"中)
步骤 3: 用户在"test - HFSSDesign1 - Modeler (窗口)"上左键单击(在"ANSYS Electronics Desktop - test - HFSSDesign1 - 3D Modeler - [test - HFSSDesign1 - Modeler]"中)
步骤 4: 用户在"确定 (按钮)"上左键单击(在"Properties: test - HFSSDesign1 - Modeler"中)
步骤 5: 用户在"test - HFSSDesign1 - Modeler (窗口)"上右键单击(在"ANSYS Electronics Desktop - test - HFSSDesign1 - 3D Modeler - [test - HFSSDesign1 - Modeler]"中)
步骤 6: 用户在"Lumped Port... (菜单项目)"上左键单击
步骤 7: 用户在"下一步(N) > (按钮)"上左键单击(在"Lumped Port : General"中)
步骤 8: 用户在"Name: (窗格)"上左键单击(在"Lumped Port : Modes"中)
步骤 9: 用户在"New Line... (列表项目)"上左键单击

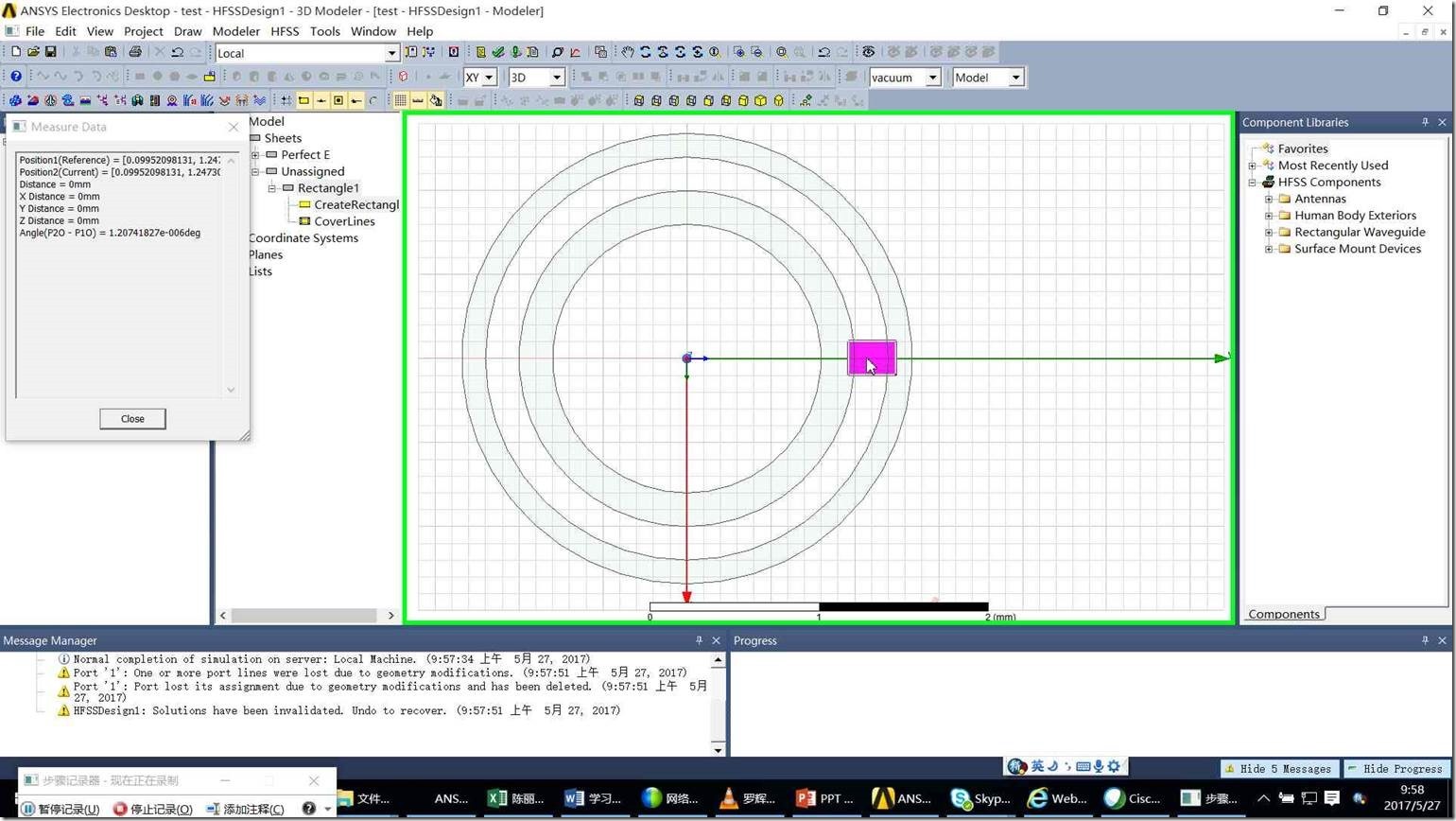

步骤 10: 用户在"test - HFSSDesign1 - Modeler (窗口)"上左键单击(在"ANSYS Electronics Desktop - test - HFSSDesign1 - 3D Modeler - [test - HFSSDesign1 - Modeler]"中)
步骤 11: 用户在"test - HFSSDesign1 - Modeler (窗口)"上左键单击(在"ANSYS Electronics Desktop - test - HFSSDesign1 - 3D Modeler - [test - HFSSDesign1 - Modeler]"中)

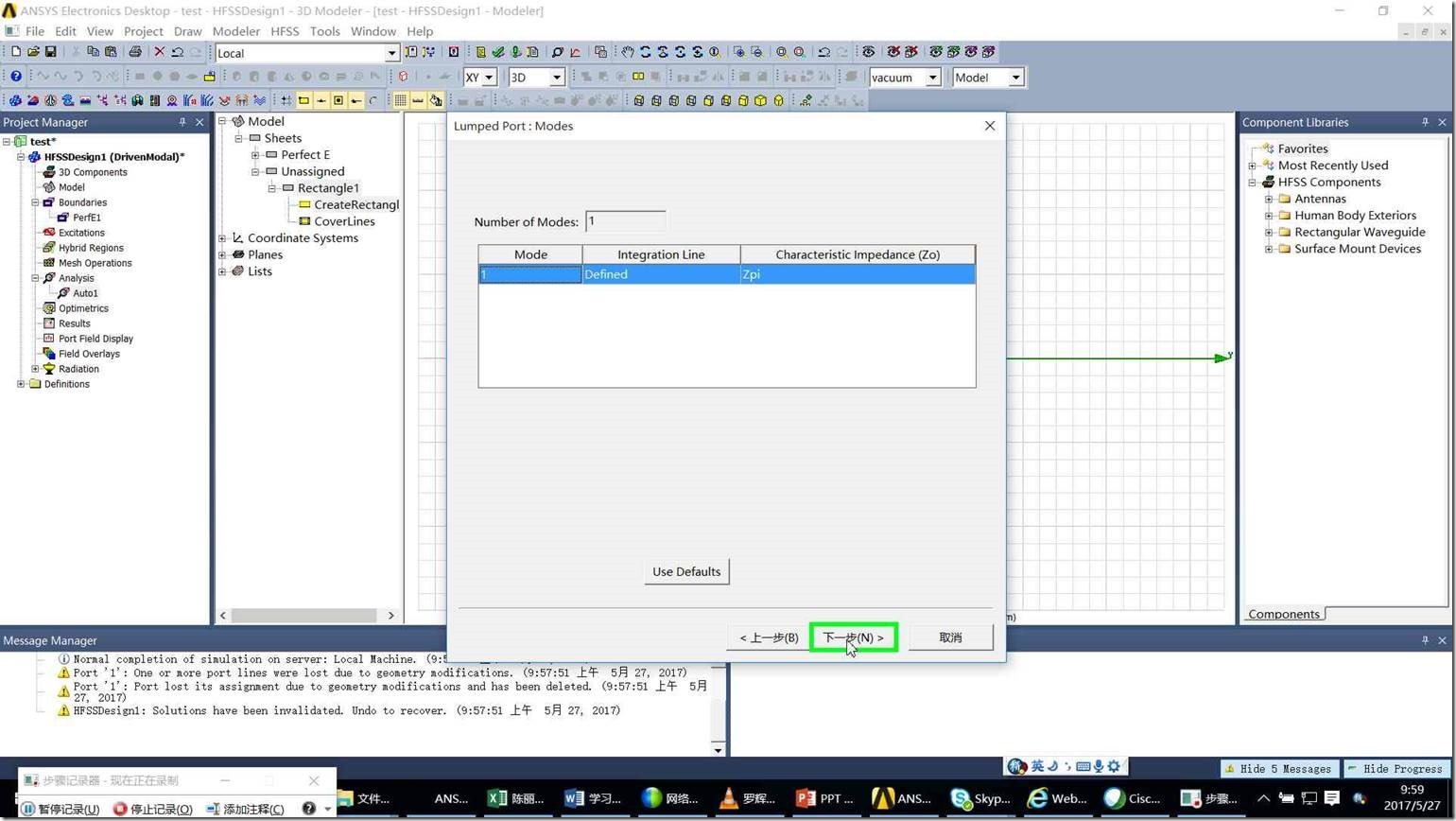

步骤 12: 用户在"下一步(N) > (按钮)"上左键单击(在"Lumped Port : Modes"中)
步骤 13: 用户在"完成 (按钮)"上左键单击(在"Lumped Port : Post Processing"中)
