HFSS 计算面上的电磁场

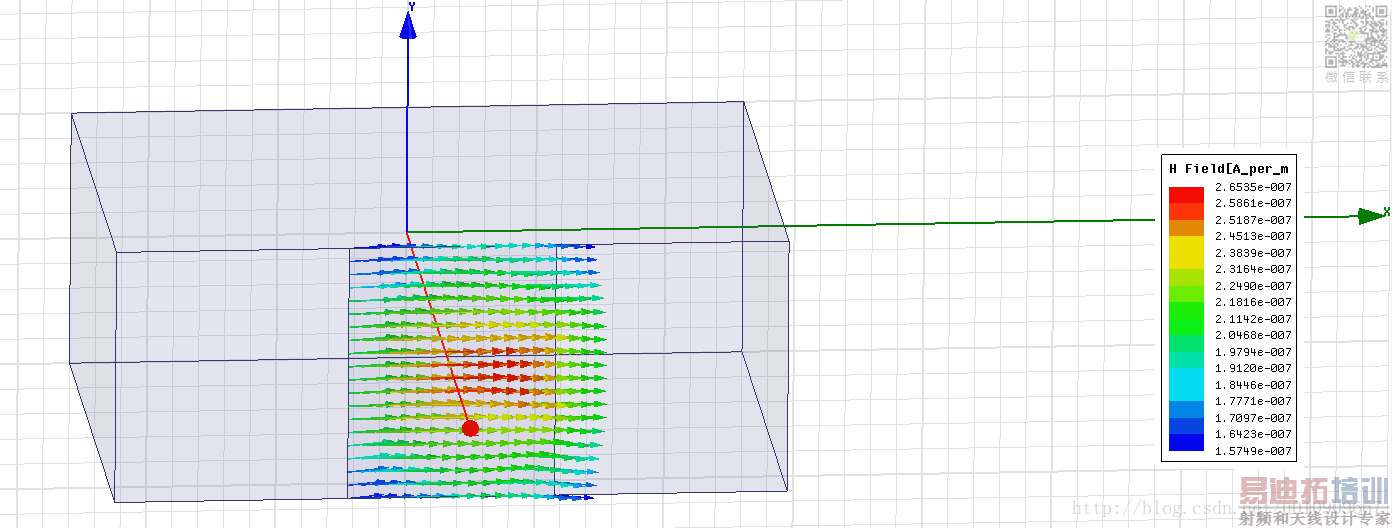

要导出如图所示这个面上的电磁场，可以生成这个面上的一系列点，计算出这些点的场值，然后保存到文件。

' ----------------------------------------------
' Script Recorded by Ansoft HFSS Version 15.0.0
' 2:01:46 下午  11月 15, 2017
' ----------------------------------------------
Dim oAnsoftApp
Dim oDesktop
Dim oProject
Dim oDesign
Dim oEditor
Dim oModule
Set oAnsoftApp = CreateObject("AnsoftHfss.HfssScriptInterface")
Set oDesktop = oAnsoftApp.GetAppDesktop()
oDesktop.RestoreWindow
Set oProject = oDesktop.SetActiveProject("cavity-waveguide-for-MAGY")

'The field on the coupled plane is correct by checking.

'=================================================================
dim Bs

'=======================@output file=====================================
Set oFS = CreateObject("Scripting.FileSystemObject")
path_Bs_E="Bs_E.txt"
Set ofile_Bs_E = oFS.CreateTextFile (path_Bs_E)

' ==========腔体的结构数据==================================================

Mode_porperties_Cavity=Array("L:=", "20mm", "Phase:=", "0deg", "W:=",  _
  "26mm", "b:=", "10mm", "d:=", "8mm")



Model_porperties_resonator= Array("Freq:=", "9.17GHz", "L:=",  _
  "20mm", "Phase:=", "0deg", "W:=", "26mm", "b:=", "10mm", "d:=", "8mm", "t:=",  _
  "1mm", "wl:=", "32.62mm")
'===========get module pointers of two model  ================================

Set oDesign_cw = oProject.SetActiveDesign("cavity-waveguide(final Model)")
Set oEditor_cw = oDesign_cw.SetActiveEditor("3D Modeler")
Set oModule_cw = oDesign_cw.GetModule("FieldsReporter")

Set oDesign_cv = oProject.SetActiveDesign("cavity-eigenModel")
Set oEditor_cv = oDesign_cv.SetActiveEditor("3D Modeler")
Set oModule_cv = oDesign_cv.GetModule("FieldsReporter")


'=================model  variables ==========================================
L= 20  'Unit : mm
d= 8
b= 10
'=============================================================================
dx =d/20
dy =b/20
z=L


i =-1
j =-1
for x = -d/2 to d/2 step dx
 i=i+1
 j =-1
 for y= -b/2 to b/2 step dy
 j=j+1
 px = Cstr(x)+"mm"
 py = CStr(y)+"mm"
 Pz = CStr(z)+"mm"
 pName="Point_"+CStr(i)+"_"+CStr(j)


oEditor_cv.CreatePoint Array("NAME:PointParameters", "PointX:=", px, "PointY:=",  _
  py, "PointZ:=", pz), Array("NAME:Attributes", "Name:=", pName, "Color:=",  _
  "(132 132 193)")

oModule_cv.CalcStack "clear"
oModule_cv.EnterQty "H"
oModule_cv.EnterPoint pName
oModule_cv.CalcOp "Value"
oModule_cv.CalcOp "Real"
oModule_cv.ClcEval "Setup1 : LastAdaptive", Mode_porperties_Cavity
Bs_Real_xyz = oModule_cv.GetTopEntryValue("Setup1 : LastAdaptive", Mode_porperties_Cavity )
Real_x = CStr(Bs_Real_xyz(0))

oModule_cv.CalcStack "pop"
oModule_cv.CalcStack "undo"
oModule_cv.CalcOp "Imag"
oModule_cv.ClcEval "Setup1 : LastAdaptive", Mode_porperties_Cavity

Bs_Imag_xyz = oModule_cv.GetTopEntryValue("Setup1 : LastAdaptive", Mode_porperties_Cavity  )
Imag_x = CStr(Bs_Imag_xyz(0))

if i<> j Then
  oEditor_cv.Delete Array("NAME:Selections", "Selections:=", pName)
end if
'===============================耦合孔处波导场=================================================
oEditor_cw.CreatePoint Array("NAME:PointParameters", "PointX:=", px, "PointY:=",  _
  py, "PointZ:=", pz), Array("NAME:Attributes", "Name:=", pName, "Color:=",  _
  "(132 132 193)")

oModule_cw.CalcStack "clear"
oModule_cw.EnterQty "E"
oModule_cw.EnterPoint pName
oModule_cw.CalcOp "Value"
oModule_cw.CalcOp "Real"
oModule_cw.ClcEval "Setup1 : LastAdaptive", Model_porperties_resonator
E_Real_xyz = oModule_cw.GetTopEntryValue("Setup1 : LastAdaptive", Model_porperties_resonator )

Real_x = CStr(E_Real_xyz(0))

oModule_cw.CalcStack "pop"
oModule_cw.CalcStack "undo"
oModule_cw.CalcOp "Imag"
oModule_cw.ClcEval "Setup1 : LastAdaptive", Model_porperties_resonator

E_Imag_xyz = oModule_cw.GetTopEntryValue("Setup1 : LastAdaptive", Model_porperties_resonator  )
Imag_x = CStr(E_Imag_xyz(0))
if i <> j Then
  oEditor_cw.Delete Array("NAME:Selections", "Selections:=", pName)
End if


'================save to file ===============
dilimt=Space(10)

line=CStr(x)+dilimt+ CStr(y) +dilimt+CStr(z) +dilimt+_
       CStr(Bs_Real_xyz(0))+dilimt + CStr(Bs_Real_xyz(1)) +dilimt+CStr(Bs_Real_xyz(2))+dilimt+_
       CStr(Bs_Imag_xyz(0))+dilimt + CStr(Bs_Imag_xyz(1)) +dilimt+CStr(Bs_Imag_xyz(2))+dilimt+_
       CStr(E_Real_xyz(0))+dilimt + CStr(E_Real_xyz(1)) +dilimt+CStr(E_Real_xyz(2))+dilimt+_
       CStr(E_Imag_xyz(0))+dilimt + CStr(E_Imag_xyz(1)) +dilimt+CStr(E_Imag_xyz(2))+dilimt
ofile_Bs_E.WriteLine line


next
next

  ofile_Bs_E.close
