HFSS模型建立求助

不胜感激啊

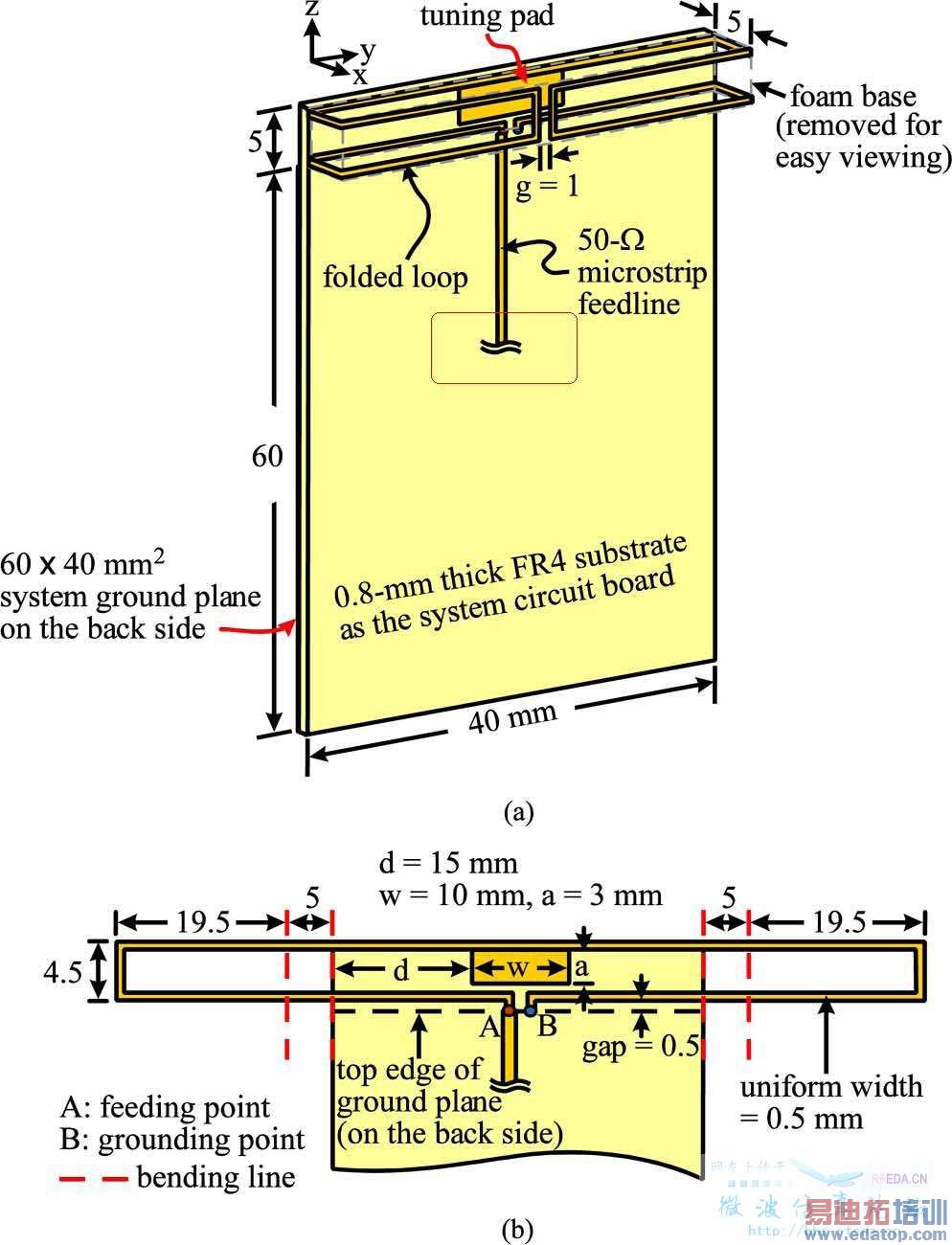

The folded loop strip has a uniform width of 0.5 mm and is arranged to be symmetric with respect to the central line of the system circuit board. One end (point A) of the folded loop strip is the feeding point of the antenna, which is at about the central line of the circuit board and is connected to a microstrip feedline printed on the front side of circuit board in this study. The other end (point B) of the folded loop strip is with a small gap of 1 mm to point A and is grounded to the system ground plane through a via-hole in the
circuit board.
