HFSS建好对称阵子列天线的模型,仿真也通过了,看远场区方向图出错
录入:edatop.com 点击:
我建好对称阵子列天线的模型,仿真也通过了,想看远场区的方向图,可是在执行以下步骤时:results--creat report--far fields--3d polar plot,出现了一下的错误:
duichenzhengzilie (E:/ansoft/)
HFSSDesign1
[error] Field, Near Field, and Far Field reports cannot be created without specifying an appropriate setup geometry - polyline, sphere, or infinite sphere respectively. Please create one before creating a report. (4:35 下午 三月 19, 2010)
[error] Field, Near Field, and Far Field reports cannot be created without specifying an appropriate setup geometry - polyline, sphere, or infinite sphere respectively. Please create one before creating a report. (4:43 下午 三月 19, 2010)
麻烦各位大侠看看该怎么修改。
duichenzhengzilie (E:/ansoft/)
HFSSDesign1
[error] Field, Near Field, and Far Field reports cannot be created without specifying an appropriate setup geometry - polyline, sphere, or infinite sphere respectively. Please create one before creating a report. (4:35 下午 三月 19, 2010)
[error] Field, Near Field, and Far Field reports cannot be created without specifying an appropriate setup geometry - polyline, sphere, or infinite sphere respectively. Please create one before creating a report. (4:43 下午 三月 19, 2010)
麻烦各位大侠看看该怎么修改。

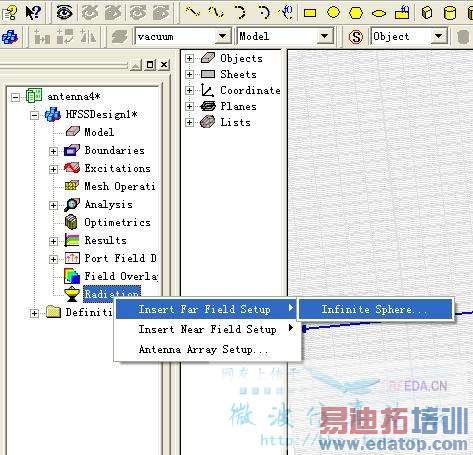

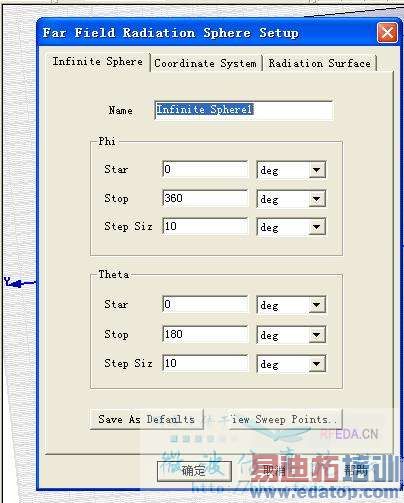

想看天线的远场,那么,你要先在软件里面进行设置,如下图所示,点击确定(也可以根据需要修改参数),重新运行一下,就可以看远场了
