HFSS脚本程序出错
录入：edatop.com 点击：

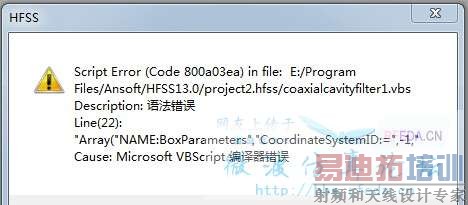

在记事本中编写HFSS13.0脚本程序，然后将程序保存为.vbs格式后，在HFSS中点击run script总是运行不了，第二行总是会报错，出错程序如下红色字体：
Set oEditor=oDesign.SetActiveEditor("3D Modeler")
oEditor.CreateBox Array("NAME:BoxParameters","CoordinateSystemID:=",-1,
"XPosition:=","-20.5mm","YPosition:=","-20.5mm","ZPosition=:","0mm",
"XSize:=","20mm","YSize:=","20mm","ZSize:=","80mm"),
Array("NAME:Attributes","Name:=","Box1","Flags:=","","Color:=","(132 132 193)"
"Transparency:=",0.8,"PartCoordinateSystem:=","Global","MaterialName:=",
"vaccum","SolveInside:=",true）
求各位大神解答，在线等，很急！！
Set oEditor=oDesign.SetActiveEditor("3D Modeler")
oEditor.CreateBox Array("NAME:BoxParameters","CoordinateSystemID:=",-1,
"XPosition:=","-20.5mm","YPosition:=","-20.5mm","ZPosition=:","0mm",
"XSize:=","20mm","YSize:=","20mm","ZSize:=","80mm"),
Array("NAME:Attributes","Name:=","Box1","Flags:=","","Color:=","(132 132 193)"
"Transparency:=",0.8,"PartCoordinateSystem:=","Global","MaterialName:=",
"vaccum","SolveInside:=",true）
求各位大神解答，在线等，很急！！
坐标系ID改为1试试。
你这是用HFSS自动记录的还是你个人自己写的？一般一句代码还没完的情况下，要加个" _ "才能另起一行。你不妨用HFSS自动记录下脚本，用记事本打开看看有什么不同。
您好！请问您的问题解决了么？我也遇到了相同的问题，即使是录制的脚本也出错，现在一筹莫展啊，这方面的资料也奇缺，如果可以的话，能否给些指导哟！不胜感激涕零
