片面螺旋天线的仿真问题？
录入：edatop.com 点击：

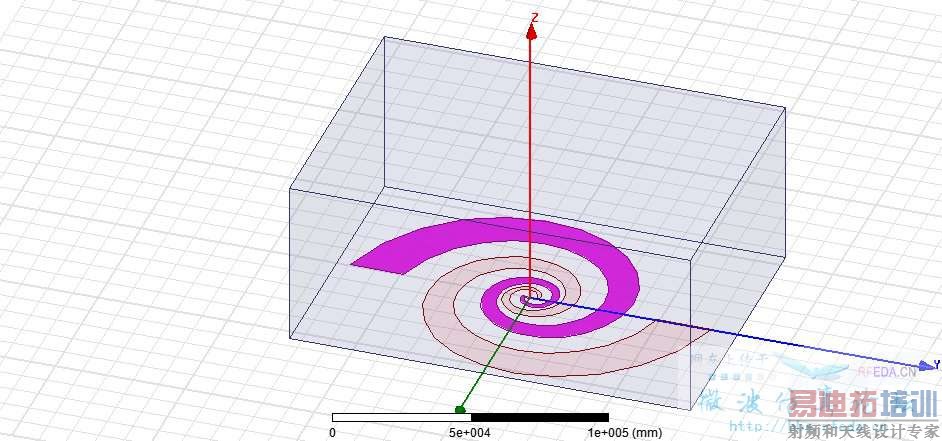

由方程得到曲线，再由曲线得到面，可是会报模型有错误，设计了不合适的局部坐标等等？这是为啥呢？新手不知道是什么意思，求大神们指导，感觉不尽)
[warning] Model dimensions (65000, 155000) are beyond the expected range (1e-006, 10000).(5:12:37 下午十一月 22, 2014)
[error] The part part1 has an invalid part coordinate system.(5:12:37 下午十一月 22, 2014)
[error] The part part1_2 has an invalid part coordinate system.(5:12:37 下午十一月 22, 2014)
[warning] Solution Setup 'Setup1': Given the specified frequency and model dimensions,an extremely large mesh will be required to produce an accurate solution.Your model and/or frequency units may be set incorrectly. (5:12:37 下午十一月 22, 2014)
[warning] Model dimensions (65000, 155000) are beyond the expected range (1e-006, 10000).(5:12:37 下午十一月 22, 2014)
[error] The part part1 has an invalid part coordinate system.(5:12:37 下午十一月 22, 2014)
[error] The part part1_2 has an invalid part coordinate system.(5:12:37 下午十一月 22, 2014)
[warning] Solution Setup 'Setup1': Given the specified frequency and model dimensions,an extremely large mesh will be required to produce an accurate solution.Your model and/or frequency units may be set incorrectly. (5:12:37 下午十一月 22, 2014)
之前画过一个脊喇叭，里面也有需要把曲线（也是用方程表示的）和直线围成的一个面。把曲线和直线unity，然后coverline成面，也出现了这个问题“ invalid part coordinate system.”。后来发现，直线和曲线unity时，要先选中直线，再选曲线，然后unity，最后coverline成面，就不会提示“invalid part coordinate system”了。
问题果真是这样，谢谢啦。
