请问怎么在OUT文件中看远、近场点的相位信息?

录入:edatop.com     点击:
如题,敬请各位的解答。
好像FEKO版块不是很热闹了啊

用记事本打开.out文件,里面就用近场和远场的幅度值和相位值分量

谁能解释一下,比如远场某点,Etheta有个相位,Ephi有个相位,他们以哪个轴(或面)为参考的啊?

抱歉...我最近忙瘋了... 過一陣子就會好一點...
22 Description of the output file of FEKO
The program FEKO writes all the results to an ASCII output file *.out as well as to a
binary output file *.bof. The latter is used by POSTFEKO for the result extractions.
The *.out file is human readable and contains all the results (unless certain output has been switched off at the DA card (see section 14.27)).
In this section the various parts of the output file *.out are described.
22.5 Near fields and SAR
If near fields are calculated, the extract shown below is given for each solution request.
The position as well as the individual components of the electric and the magnetic field strength are given. This is — if not otherwise requested at the FE card — the total value of the field, i.e. the sum of the incident wave and the scattered field.
22.6 Far fields and receiving antenna

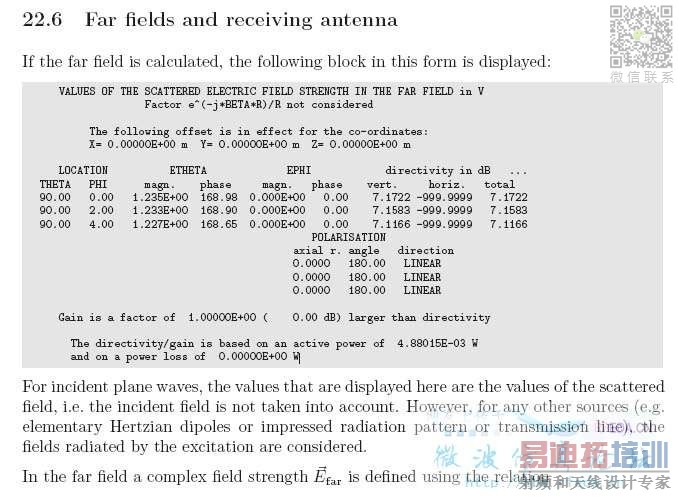

If the far field is calculated, the following block in this form is displayed:

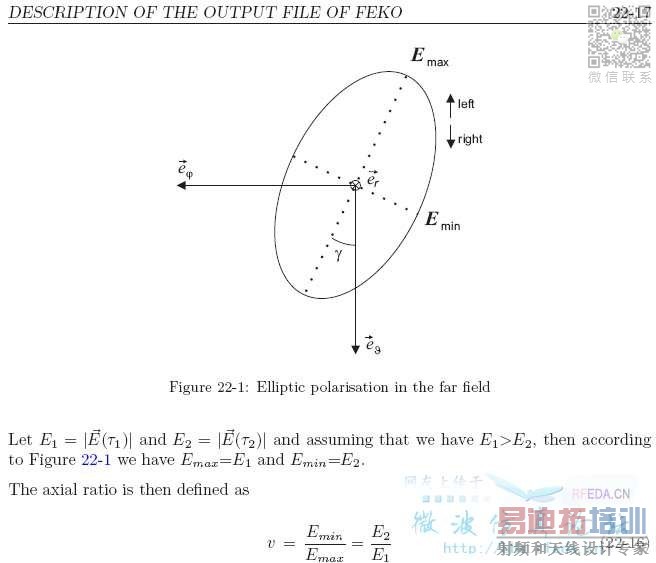

  • 以第一行数据为例,我们已知该点处的两个方向Etheta、Ephi的幅度分量和相位分量,那么合成幅度怎么求,合成相位呢?手册已经看了,但是感觉它没交待清楚。
