AltiumDesigner6.7不能正常出孔数据，大家帮忙指导一下

我的板子有圆孔和长条孔，需要在一个*.DRL　文件中输出所有孔的信息，最好的办法就是在AltiumDesigner6.7的CAM环境是导出一个可被Cam350导入的.drl文件，但现在怎么都导不出来。我的方法是这样的：

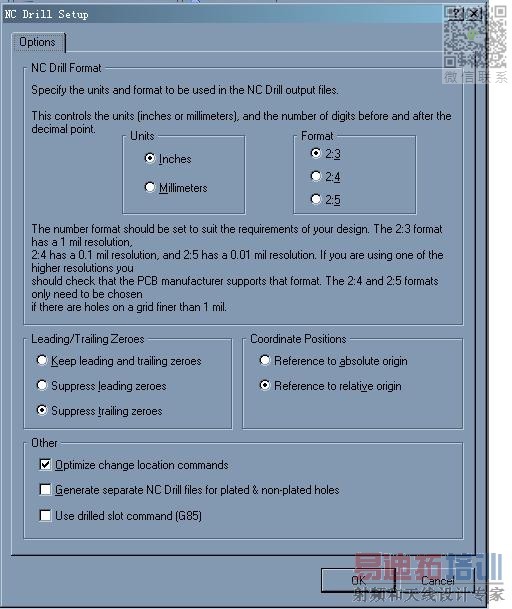

1　在PCB环境下用Fill->fabrication output->NC Drill file 生成一个CAMtastic文件，系统自动到CAM环境中。

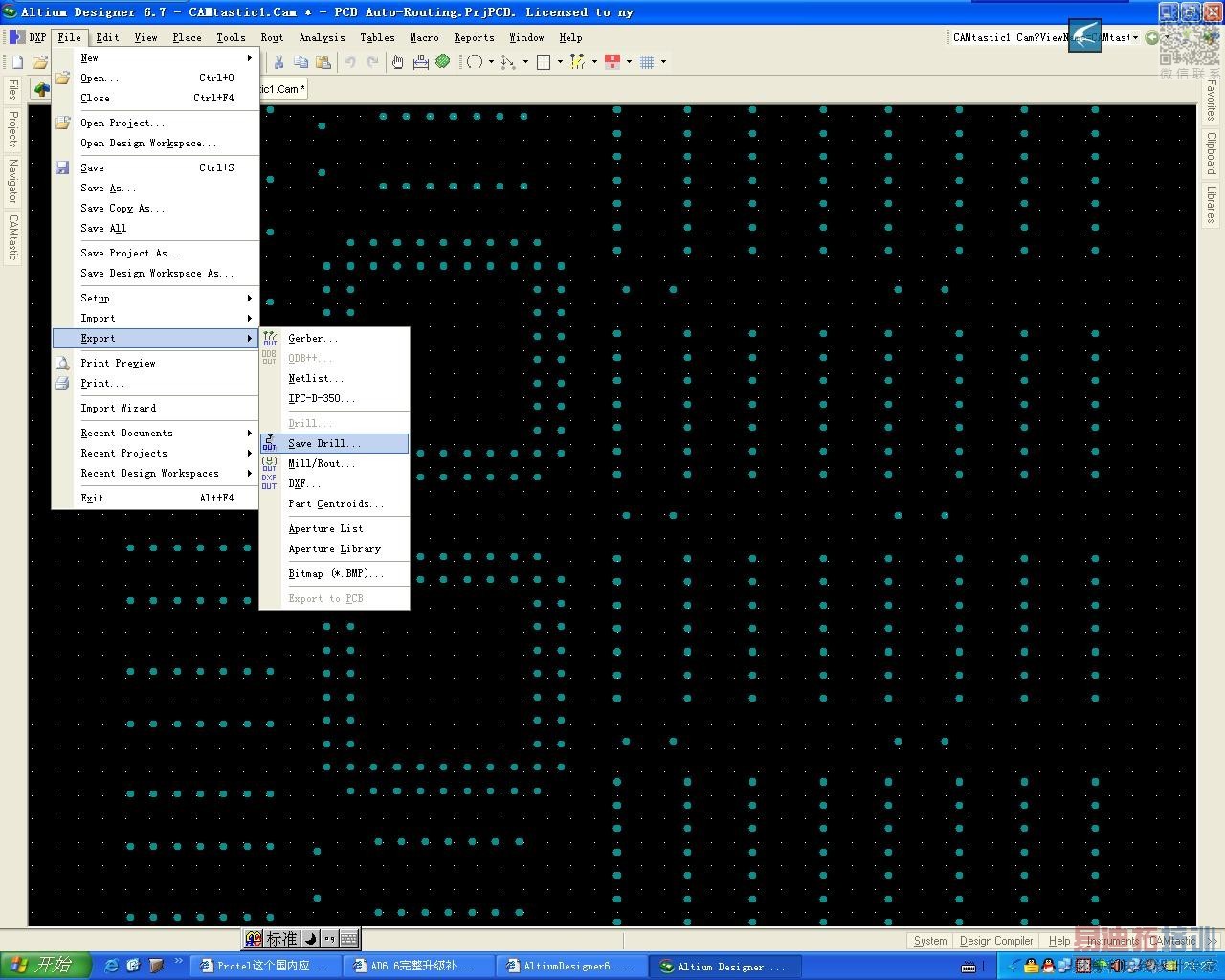

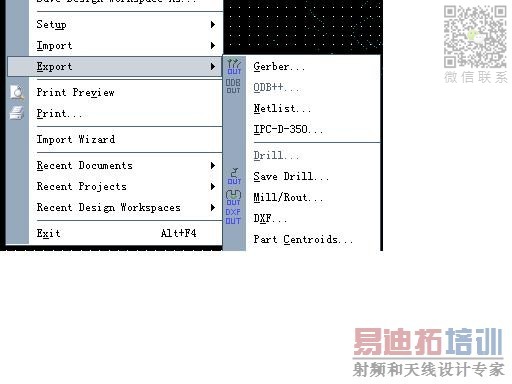

2　在CAM环境中，应该用File->export->Drill...导出钻孔文件，但是这是?Drill...却是灰色的。
我用同样的方法在两台计算机上安装ad67，原来的是情况是一台上的可能导出钻孔文件，另一台上不能，我把后者的安装用前者覆盖一次，不能解决问题；把能导出钻孔文件程序所在硬盘调到另一台机器上，还是不能，奇怪的是，两台计算机都不能导出钻孔文件了！

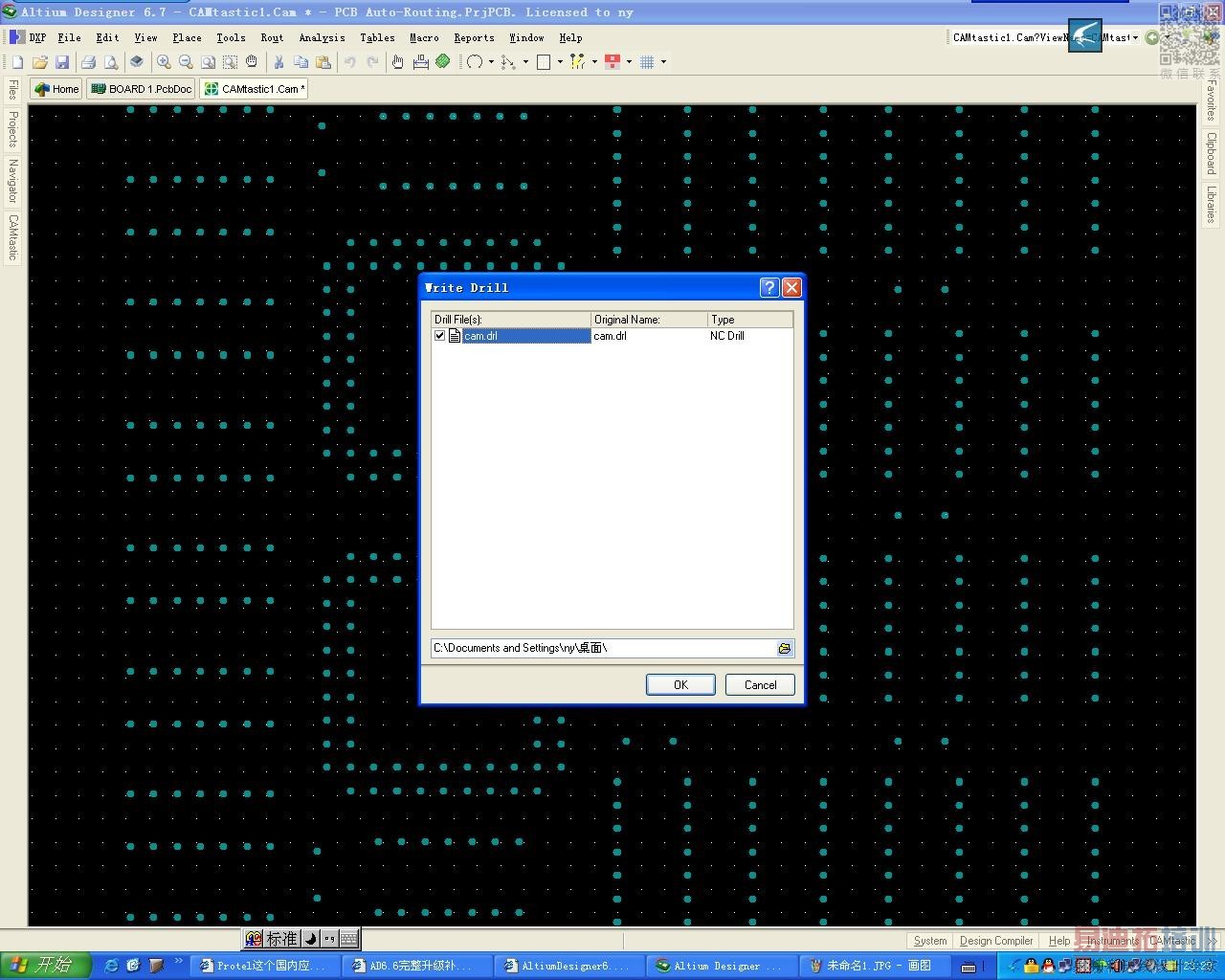

用save drill这个命令

在新建菜单选择 OUTJOB \新建一个输出工作夹，弹出一个很多选项的窗口，其中列出了几乎所有的输出内容，你选择OUT GERBER 双击会弹出你上面的图，设置步骤和在99一样。

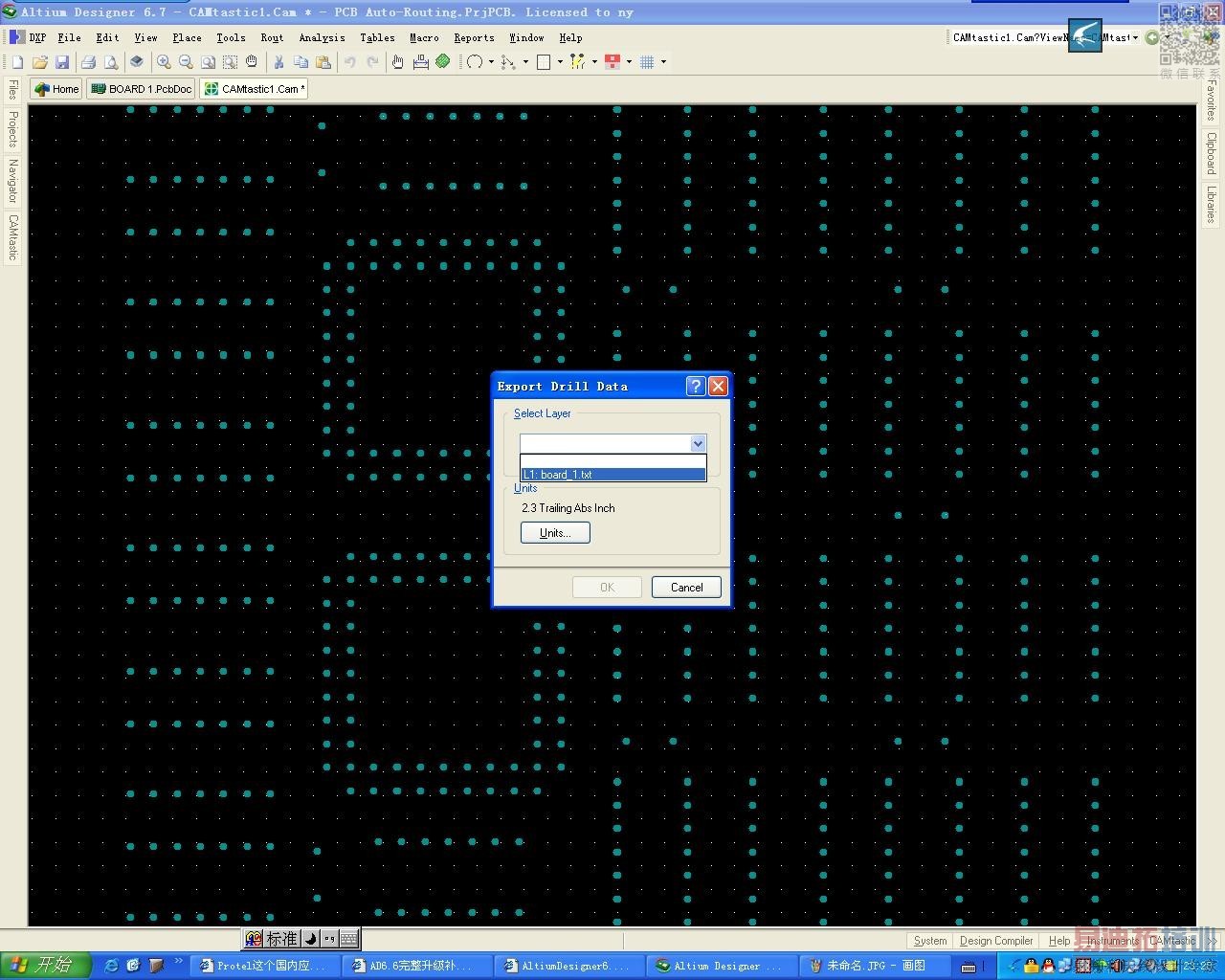

感谢楼上两位的回答！这几天仔细研究了AltiumDesigner6.7的光绘输出和cam350，所碰到的问题已解决。关于我说的问题，是因为没有在AD的CAM环境下切换到NC Edit 方式(View->NC Edit...)，切换以后，Drill...就可以用，能在一个文件中输出圆孔和长条孔。

但是现在又有一个新的问题，我的有圆孔和长条孔的钻孔文件导入到CAM350后可正常显示，再导出，钻孔数据也正常，就是报告的结果不正常，下面附一钻孔文件，一共有503个孔，谁有兴趣就研究一下，看为什么CAM350报告的不是503个?

G92
M48
INCH,LZ
FMAT,2
T01C0.0150
T02C0.0280
T03C0.0300
T05C0.0320
T06C0.0394
T08C0.0400
T09C0.0433
T10C0.0472
T11C0.0500
T12C0.0550
T13C0.0669
T14C0.0787
T15C0.0984
T16C0.0300
T17C0.0550
DETECT,ON
%
G90
T01
X12746Y08926
X14037Y09889
X13917Y09259
X11255Y09924
X11296Y10215
X11469Y10146
X1142Y10345
X11568Y10971
X12565Y10145
X14124Y10843
X13846Y11349
X13589Y11343
X13348Y11646
X11747Y11114
X11734Y12494
X11771Y12522
X14471Y12623
X14522Y12581
X1465Y12513
X14692Y12546
X14258Y13663
X13506Y13695
X13422Y1332
X13688Y1325
X1217Y137
X12176Y13628
X12245Y1363
X11895Y13175
Y13255
X11694Y13235
X117Y13336
X11622Y13409
X11536Y13408
X11441Y1328
X11451Y13177
X11365Y13015
X1105Y1303
X11134Y13135
X11159Y13185
X11139Y13225
X11403Y13578
X11466Y13581
X1177Y13569
X11765Y13769
X11882Y13989
X11325Y13985
X11215Y13876
X1172Y1405
X11714Y14729
X11605Y14697
X12757Y14786
X1266Y14431
X12961Y14458
X1239Y1479
X1229Y14785
X12337Y14456
X12384Y14444
X12413Y14391
X12312Y14312
X13949Y14621
X13273Y14813
X14359Y14248
X14246Y14964
X14157Y15127
X12524Y15031
X12485Y15062
X12445Y15093
X111Y1541
T02
X1084Y1115
Y11914
X11209Y1316
Y1327
X13849Y14147
Y14347
Y14585
Y14785
T03
X11719Y08703G85X11769
X13029Y08891
X13032Y08893
X13129Y08891
X13229
X13329
X13429
X13529
X13629
X13729
X13829
Y08991
X13729
X13629
X13529
X13429
X13329
X13229
X13129
X13032Y08993
X13029Y08991
X13879Y08703G85X13929
X14304Y0928G85Y0933
X13029Y09091
X13032Y09093
X13129Y09091
X13229
X13329
X13429
X13529
X13629
X13729
X13829
Y09191
X13729
X13629
X13529
X13429
X13329
X13229
X13129
X13032Y09193
X13029Y09191
X13028Y09316
X1303Y09318
X13128Y09316
X13228
X13328
X13428
X13528
X13628
X13728
X13828
X13029Y0958
Y0968
Y0978
X13129
X13229
X13329
X13429
Y0968
X13329
X13229
X13129
Y0958
X13229
X13329
X13429
X1364Y09585
Y09668
Y09735
X13634Y098
X13631Y09857
X1372Y09856
Y09792
X13727Y09731
Y09662
Y09586
X12492Y0942
X12801Y09441
X11169Y0961G85Y0966
X10754Y10833
X10654
X10955Y10344
X113Y10478
X11169Y1082G85Y1087
X12058Y10566
X13464Y10629G85X13514
X14479Y11187
X14579
Y11274
Y1136
Y11447
X14479
X14023Y11252
X14299Y1109G85Y1114
X1344Y1185
X13413Y11348
X1327Y11473
X13879Y11931G85X13929
X12931Y11691
X12757Y11748
X11459Y11254
X113Y11258
X11719Y11931G85X11769
X10622Y11252
Y11152
Y11352
Y11452
X10936Y11895
X10806Y12208
X12874Y12323
X12949Y12447
X12506Y12026
X12327Y1212
X12082Y12085
X12022Y12521
X1326Y12123
X13024Y12228
X14075Y12173
X1416Y13775
X14103Y13507
X14553Y13427
X1319Y1378
X13566Y1379
X13612Y13614
X13723Y13519
X13814Y13421
X13877Y13611
X13805Y1378
X12173Y13163
Y13063
X12385Y13325
X12346Y13568
X12567Y13058
X12634Y13163
X12542Y1373
X11445Y13409
X11589Y13265
Y13135
X11875Y1349
X10801Y1311
X10901
X10901Y13312
X10801
X10903Y13411
X10905Y1483
X1073Y14955
X11995Y1464
X11935Y1446
Y14215
X11655Y14465
X11605Y1459
X11495Y1487
X1134Y1495
X11135
X112Y1487
X11185Y1462
X1182Y14805
X1301Y1459
X12705Y14644
X129Y14875
X12285Y1496
X12035Y14949
X12168Y14807
X1367Y14895
X134Y14668
X13329Y14452
X1333Y1421
X13061Y14453
X1307Y14965
X1314Y1484
X14462Y14702
X143Y14795
X1415Y1503
T05
X14101Y08959
Y09359
X14042Y09718
X14121
X1218Y0966
X1178
X11688Y09656
Y09778
X11288
Y09656
X12086Y10269
Y10348
X12505Y11666
Y11745
X11955Y11114
Y11035
X13616Y12906
X13615Y12776
X14015
X14016Y12906
X14017Y13043
X14021Y13181
Y13315
X14326Y13274
Y13974
X12998Y13512
X13132Y13516
X13211
X1321Y13903
X13518Y13856
X13621Y13315
Y13181
X13617Y13043
X1207Y1386
X12197Y14003
X12169Y13371
Y13292
X12919Y13512
X1281Y13903
X12597Y14003
X11273Y13933
X11426Y13935
X11826
X10873Y13933
Y14046
X10883Y14158
X10873Y1427
Y14382
X11273Y14046
X11426Y14047
X11826
Y14383
Y14271
Y14159
X11426
Y14271
Y14383
X11273Y14382
Y1427
X11283Y14158
X12809Y14045
Y14157
Y14269
Y14381
X12607Y14377
X12597Y14255
X12607Y14129
X12207
X12197Y14255
X12207Y14377
X1207Y1456
X13209Y14045
X13518Y14556
X13209Y14381
Y14269
Y14157
X14353Y14165
X14235
Y14565
X14353
X14696Y14548
Y14148
X14526Y15023
Y15423
T06
X11011Y08868
X12626Y0892
X13168Y09885
X13353Y09909
X13168Y09492
X13353Y09436
X12626Y0902
Y0912
X12487Y09306
Y09787
X12747Y09657
X12975Y09897
Y09425
X11622Y09342
X11346
Y09042
X11622
X11011Y09459
X11322Y10051
X11482
X11987Y1072
Y10917
X12283Y10208
Y10368
X12747Y10051
X12944Y10086
Y1048
X12215Y10866G85X12196
X12432G85X12412
X13339Y10087
X13184
X13495
X1365
X13806
Y105
X1365
X13495
X13339
X13184
X13341Y11262
X13538
X12704Y11145G85X12684
X1292G85X129
X10719Y11638G85Y11685
X10603Y11638G85Y11685
X1288Y12993G85Y13012
Y12776G85Y12796
X13262Y12784G85Y12804
Y13001G85Y1302
X106Y13439G85Y13486
X10716Y13439G85Y13486
Y14818G85Y14865
X106Y14818G85Y14865
X14542Y14292
Y14392
Y14492
Y14592
Y14692
Y14792
X14542Y14892
X12193Y15317G85Y15238
X11319Y15195
X11323Y15502
X11618Y15317G85Y15238
T08
X10711Y09743
Y09843
X10712Y09943
X10812
Y10043
X10712
Y10143
X10812
Y10243
X10712
Y10343
X10812
Y10443
X10712
Y10543
X10812
Y10643
X10712
X1257Y10596
Y10458
X13054Y10763
Y1096
X14072Y10437
X14172
Y10137
X14072
X14078Y114
Y11596
X12684Y11415
X12487
X1228Y11232
X12142
X12085Y11592
Y11789
X10874Y12606
Y12706
X10974
Y12606
X11074Y12706
X11174
X11274
Y12606
X11174
X11074
X11374
X11474
X11476Y12703
X11574Y12706
X11674
X11774
Y12606
X11674
X11574
X11874
X11974
Y12706
X11874
X11374
X12074
X12174
Y12606
X12074
X12274
X12374
Y12706
X12474
Y12606
X12274Y12706
X14551Y13829
Y13929
X13153Y13253
X13291
X12827Y13245
X12964
X14551Y14029
Y14129
T09
X12842Y08965
Y0926
T10
X12353Y09321
X12337Y10007
X12353Y09733
X11605Y10007
X10731Y09557
X10975Y09714
T11
X13509Y09562
Y09662
Y09862
X13849
Y09762
Y09662
Y09562
T12
X11267Y12344
T13
X12708Y10838
X1291Y1065
X13398Y10973
X13196Y11161
T14
X14699Y11047
Y11587
T15
X14449Y10529
X14709
X14609Y10709
X14739Y11317
T16
X11107Y12439
T17
X11107Y12345
M30
