WG2000.5的symbol问题
录入：edatop.com 点击：

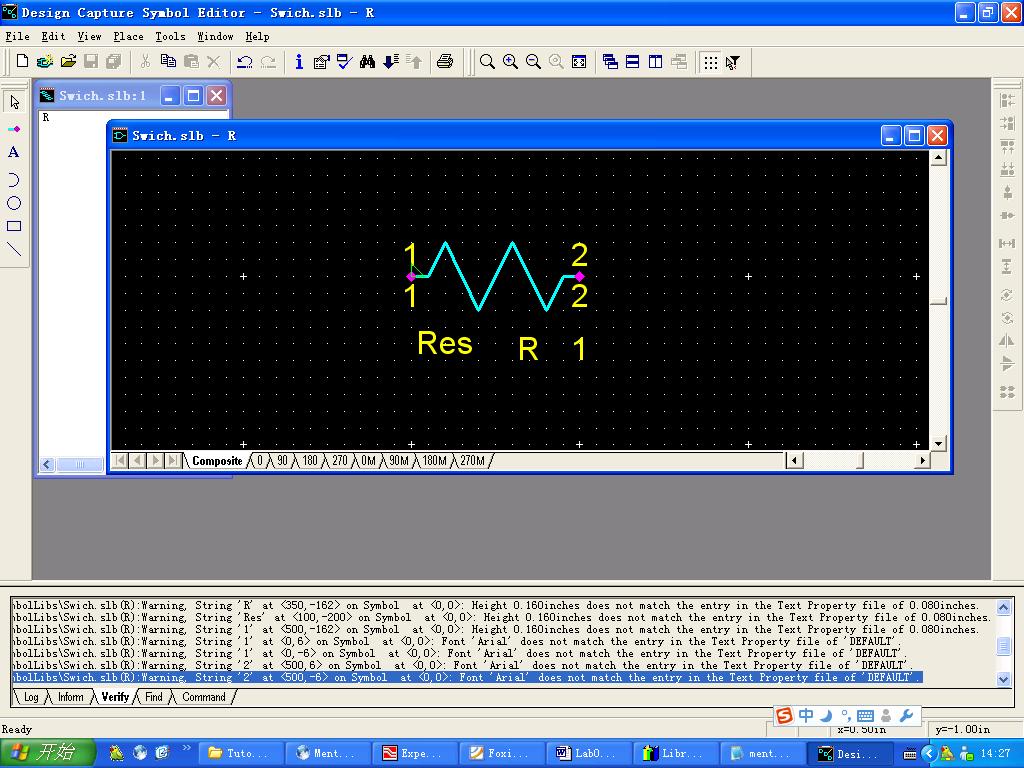

使用WG2000.5制作symbol保存时出现警告：如下

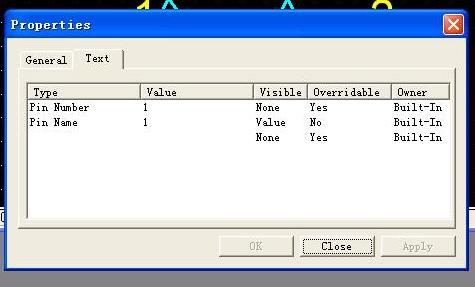

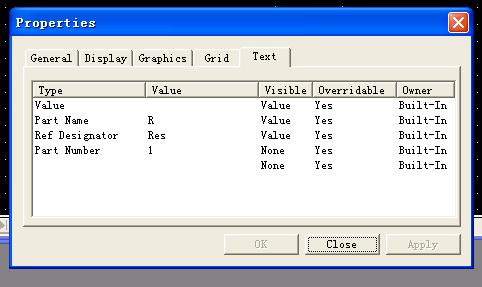

（其中properties设置如图）
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '1' at <0,6> on Symbol at <0,0>: 'INVISIBLE' text does not match the visibility entry in the Text Property file.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '2' at <500,6> on Symbol at <0,0>: 'INVISIBLE' text does not match the visibility entry in the Text Property file.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '1' at <500,-162> on Symbol at <0,0>: 'INVISIBLE' text does not match the visibility entry in the Text Property file.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '1' at <0,6> on Symbol at <0,0>: Height 0.160inches does not match the entry in the Text Property file of 0.080inches.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '1' at <0,-6> on Symbol at <0,0>: Height 0.160inches does not match the entry in the Text Property file of 0.080inches.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '2' at <500,6> on Symbol at <0,0>: Height 0.160inches does not match the entry in the Text Property file of 0.080inches.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '2' at <500,-6> on Symbol at <0,0>: Height 0.160inches does not match the entry in the Text Property file of 0.080inches.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String 'R' at <350,-162> on Symbol at <0,0>: Height 0.160inches does not match the entry in the Text Property file of 0.080inches.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String 'Res' at <100,-200> on Symbol at <0,0>: Height 0.160inches does not match the entry in the Text Property file of 0.080inches.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '1' at <500,-162> on Symbol at <0,0>: Height 0.160inches does not match the entry in the Text Property file of 0.080inches.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '1' at <0,6> on Symbol at <0,0>: Font 'Arial' does not match the entry in the Text Property file of 'DEFAULT'.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '1' at <0,-6> on Symbol at <0,0>: Font 'Arial' does not match the entry in the Text Property file of 'DEFAULT'.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '2' at <500,6> on Symbol at <0,0>: Font 'Arial' does not match the entry in the Text Property file of 'DEFAULT'.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '2' at <500,-6> on Symbol at <0,0>: Font 'Arial' does not match the entry in the Text Property file of 'DEFAULT'.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String 'R' at <350,-162> on Symbol at <0,0>: Font 'Arial' does not match the entry in the Text Property file of 'DEFAULT'.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String 'Res' at <100,-200> on Symbol at <0,0>: Font 'Arial' does not match the entry in the Text Property file of 'DEFAULT'.
C:\Documents and Settings\Administrator\桌面\text\SymbolLibs\Swich.slb(R):Warning, String '1' at <500,-162> on Symbol at <0,0>: Font 'Arial Baltic' does not match the entry in the Text Property file of 'DEFAULT'.
Verify complete: 0 error(s) 17 warning(s)
