总线不匹配
录入：edatop.com 点击：

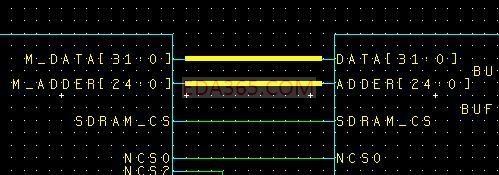

Error on block at91rm9200_core, pin/port ADDER[24:0] on block $1I383: Net width mismatch between the net attached to the parent block and the net attached to the child port. Parent net has a width of 1, child has a width of 25.
Error on block at91rm9200_core, pin/port M_ADDER[24:0] on block $1I195: Net width mismatch between the net attached to the parent block and the net attached to the child port. Parent net has a width of 1, child has a width of 25.
二边地址总线都是25位的为什么总是报错。就是解决不了?那个高手知道怎么回事吗?
Error on block at91rm9200_core, pin/port M_ADDER[24:0] on block $1I195: Net width mismatch between the net attached to the parent block and the net attached to the child port. Parent net has a width of 1, child has a width of 25.
二边地址总线都是25位的为什么总是报错。就是解决不了?那个高手知道怎么回事吗?
说实话，还没有这样用过
问题解决了。总线必须命名。这样总线之间才能对应起来。这个和DC确实有些差别。
dx是根据总线的名字来确定总线宽度的
