Expedition PCB

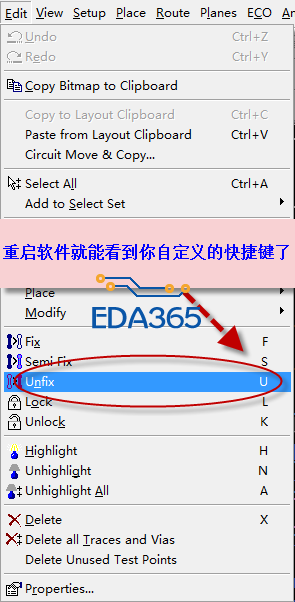

按截图所示步骤操作，完成后重新打开一下软件就可以了

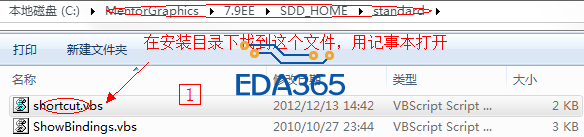

我的那个目录下面怎么没有shortcut.vbs这个文件啊

如果没有 你可以自己写一个 放在上面！启动软件后直接拖到窗口里就可以了！

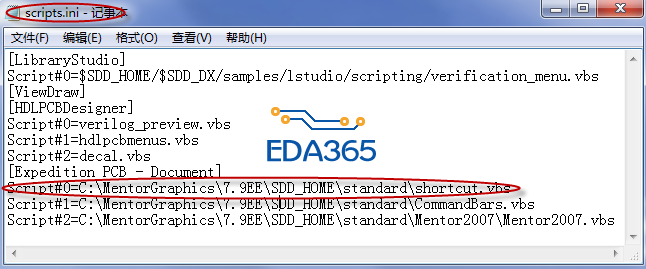

前提是你要在strip.ini里面加上启动路径，如：
Script#4=C:\MentorGraphics\2007EXP\SDD_HOME\standard\shortcut.vbs

是的

我是看5楼和6楼的

谁能发个文件给我啊?万分感谢！

Magic520 你太了不起，谢谢！

牛啊,学习学习

请问2005EXP有这个功能吗?我按你所示的操作了但是没有成功！

搞定,原来我的在设置复合命令的时候中间不能有空格,如KeyBindTabers.AddKeyBinding "S" , "Edit->SemiFix" ,0 , 1,谢谢Magic520！

强啊

strip.ini 我也是2005版本的，没找到这个文件的位置，求解

谢谢，找到了，是scripts.ini这个文件。接着试下面的步骤，谢谢！

  Magic520你能把shortcut.vbs这个文件发个给我吗 spring0256@163.com

为什么我的试了下不行啊 ！设置不了！Magic520 求解啊?

我的是2007.9.3

那请问那下“，0 ， 1”这是代表什么意思！

我想请问下：走线，改线宽、绕等长 这些命令怎么设置快捷键啦！Magic520求帮助！谢谢！

可我不想用F3走线，我想设置别的;改线宽与前面一样设置的话，还不是也要输入你改变线宽的值呀！这样太慢啦！我是想：比如：我设置数字3为改线宽值为15mil的快捷键，设好之后，我一按数字3线宽就变成15mil啦！MAGIC520这样你会设置吗?谢谢！

你好，你能复制一下shortcut.vbs开头的格式上来吗?
不需要内容，求格式。不知道是不是标点还是全半角问题，我设置不成功啊。谢谢。

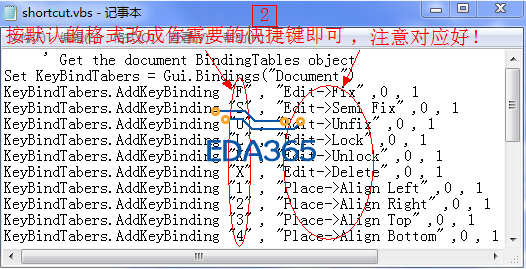

测试了一下，shortcut.vbs 文件的开始内容这样就可以。
Set KeyBindTabers = Gui.Bindings("Document")
KeyBindTabers.AddKeyBinding "F","Edit->Fix" ,0,1
KeyBindTabers.AddKeyBinding "U","Edit->Unfix" ,0,1

1、scripts.ini文件里添加了下面的内容：
[Expedition-Document]
Script#0=E:\EDA\EE2005\2005EXP\SDD_HOME\standard\shortcut.vbs
2、standard文件夹里没有shortcut.vbs，自己建了一个，添加了下面内容：
Set KeyBindTabers = Gui.Bindings("Document")
KeyBindTabers.AddKeyBinding "F","Edit->Fix" ,0,1
KeyBindTabers.AddKeyBinding "U","Edit->Unfix" ,0,1
3、重启Expedition，但是没成功。怎么回事呀?是不是我还要设置一下什么?

不错的方法

我以前一直是拖到窗口的，每次都很麻烦，现在可以启动就加载了，

我参考您的设置成功了，分享一下：
1.用记事本打开C:\mgc\EE7.9.3\7.9.3EE\SDD_HOME\standard\automation\startup\scripts.ini文件，在里面添加
Script#3=shortcut.vbs
2.C:\mgc\EE7.9.3\7.9.3EE\SDD_HOME\standard\automation\startup文件夹下没有shortcut.vbs文件，将同类型的文件复制一下，文件名改成shortcut.vbs，同样用记事本打开，将内容改成
Set KeyBindTabers = Gui.Bindings("Document")
KeyBindTabers.AddKeyBinding "F","Edit->Fix" ,0,1
KeyBindTabers.AddKeyBinding "s","Edit->SemiFix" ,0,1
KeyBindTabers.AddKeyBinding "U","Edit->Unfix" ,0,1
KeyBindTabers.AddKeyBinding "L","Edit->Lock" ,0,1
KeyBindTabers.AddKeyBinding "K","Edit->Unlock" ,0,1
KeyBindTabers.AddKeyBinding "H","Edit->Highlight" ,0,1
KeyBindTabers.AddKeyBinding "N","Edit->Unhighlight" ,0,1
KeyBindTabers.AddKeyBinding "A","Edit->UnhighlightAll" ,0,1
KeyBindTabers.AddKeyBinding "1","Place->Align Top" ,0,1
KeyBindTabers.AddKeyBinding "2","Place->Align Bottom" ,0,1
KeyBindTabers.AddKeyBinding "3","Place->Align Left" ,0,1
KeyBindTabers.AddKeyBinding "4","Place->Align Right" ,0,1
3、重启Expedition PCB,就ok 了

关于快捷键我有个问题，软件自带的那些快捷键是在哪个文件中设置的，想改一下，发现C:\mgc\EE7.9.3\7.9.3EE\SDD_HOME\standard\vdbindings文件中有
Bindings("Application").AddKeyBinding "Ctrl+A", "EditRedo", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Insert", "EditCopy", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+C", "EditCopy", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Alt+G", "ProjectSettings", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+N", "FileNew", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+O", "BlockOpen", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+P", "FilePrint", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+S", "FileSave", Menu, Accelerator
Bindings("Application").AddKeyBinding "Shift+Insert", "EditPaste", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+V", "EditPaste", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Delete", "EditDelete", Menu, Accelerator
Bindings("Application").AddKeyBinding "F1", "Help", Menu, Accelerator
Bindings("Application").AddKeyBinding "Shift+F1", "HelpContext", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+F1", "HelpDxDesignerHelpTopics", Menu, Accelerator
Bindings("Application").AddKeyBinding "Shift+Delete", "EditCut", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+X", "EditCut", Menu, Accelerator
Bindings("Application").AddKeyBinding "Alt+Backspace", "EditUndo", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Backspace", "EditRedo", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Z", "EditUndo", Menu, Accelerator
Bindings("Application").AddKeyBinding "Alt+Enter", "WVOProperties", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Q", "WVOProperties", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Alt+Space", "AddOffPagePin", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Alt+Shift+Space", "AddOnPagePin", Menu, Accelerator
但是有的和启动软件后看到的不一致，搞不懂了，恳求高手指导啊！

C:\mgc\EE7.9.3\7.9.3EE\SDD_HOME\standard\exped_pv中的和软件启动后的基本相同

Bindings("Application").AddKeyBinding "F10", "ViewFull", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+A", "EditSelectAll", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Insert", "EditCopy", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+C", "EditCopy", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+F", "EditFindReplace", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+H", "EditReplace", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Alt+G", "ProjectSettings", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+N", "FileNew", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+O", "BlockOpen", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+P", "FilePrint", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+S", "FileSave", Menu, Accelerator
Bindings("Application").AddKeyBinding "Shift+Insert", "EditPaste", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+V", "EditPaste", Menu, Accelerator
Bindings("Application").AddKeyBinding "Alt+Backspace", "EditUndo", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Backspace", "EditRedo", Menu, Accelerator
Bindings("Application").AddKeyBinding "Delete", "EditDelete", Menu, Accelerator
Bindings("Application").AddKeyBinding "Shift+Delete", "EditCut", Menu, Accelerator
Bindings("Application").AddKeyBinding "F1", "Help", Menu, Accelerator
Bindings("Application").AddKeyBinding "Shift+F1", "HelpContext", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+F1", "HelpDxDesignerHelpTopics", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+X", "EditCut", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Z", "EditUndo", Menu, Accelerator
Bindings("Application").AddKeyBinding "Alt+Enter", "WVOProperties", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Q", "WVOProperties", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Alt+Space", "AddOffPagePin", Menu, Accelerator
Bindings("Application").AddKeyBinding "Ctrl+Alt+Shift+Space", "AddOnPagePin", Menu, Accelerator
Bindings("Application").AddKeyBinding "F6", "EditUndo", Menu, Accelerator
Bindings("Application").AddKeyBinding "F12", "WVOProperties", Menu, Accelerator

你好！想请教下我也是2005的mentor，但一直没设置成功，帮忙看下，谢谢！shortcut.vbs文件内容：
Set KeyBindTabers = Gui.Bindings("Document")
KeyBindTabers.AddKeyBinding"F","Edit->Fix",0,1

scripts.ini文件也设置了路径
[LibraryStudio]
Script#0=$SDD_HOME/$SDD_DX/samples/lstudio/scripting/verification_menu.vbs
[ViewDraw]
Script#0=ProjectPlot.vbs
Script#1=CorrectLibMenu.vbs
[HDLPCBDesigner]
Script#0=verilog_preview.vbs
Script#1=hdlpcbmenus.vbs
Script#2=decal.vbs
Script#3=D:\softsystem\MentorGraphics\2005EXP\SDD_HOME\standard\shortcut.vbs
