Mentor Dx Designere中选择package时总是出现3个错误
录入：edatop.com 点击：
在Mentor Dx Designere中选择package时总是出现3个错误。各位大虾，知道是什么原因吗?
我的软件刚安装的，第一次使用Dx Designer做原理图设计。
//==================================================>>

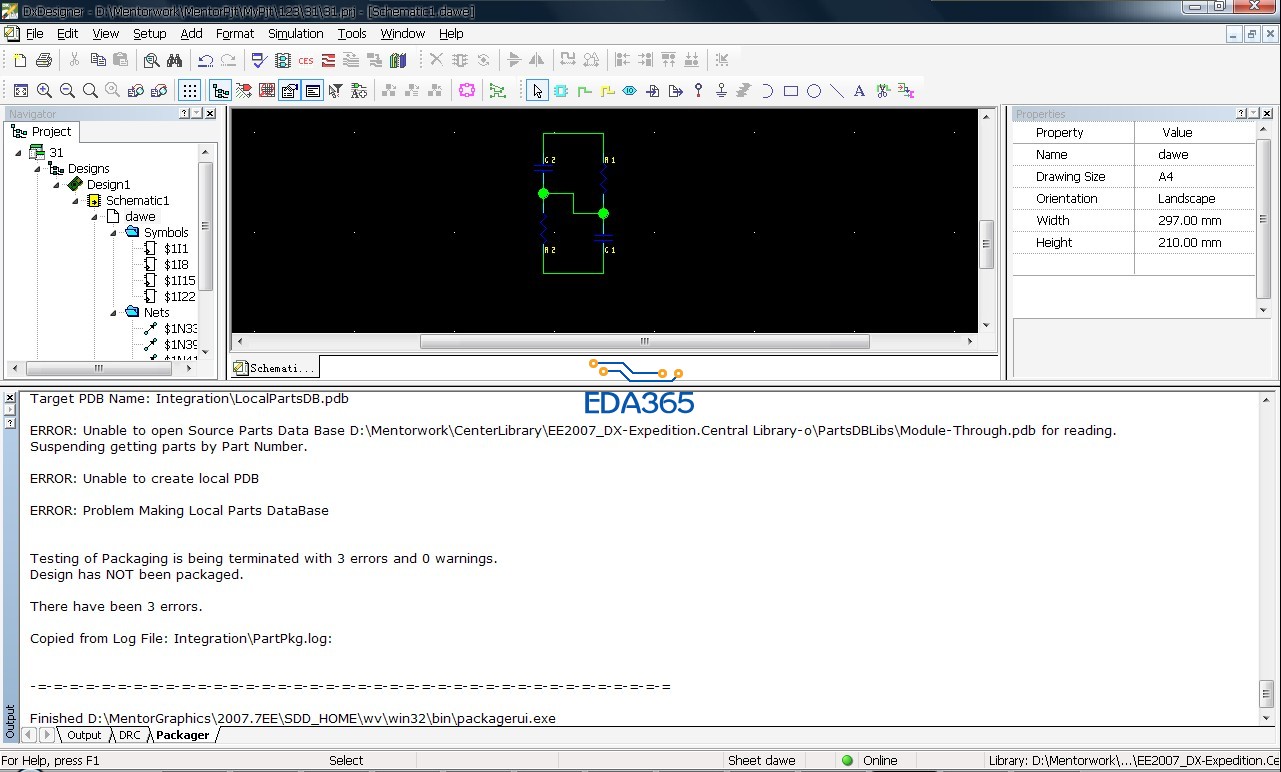

Target PDB Name: Integration\LocalPartsDB.pdb
ERROR: Unable to open Source Parts Data Base D:\Mentorwork\CenterLibrary\EE2007_DX-Expedition.Central Library-o\PartsDBLibs\Module-Through.pdb for reading.
Suspending getting parts by Part Number.
ERROR: Unable to create local PDB
ERROR: Problem Making Local Parts DataBase
Testing of Packaging is being terminated with 3 errors and 0 warnings.
Design has NOT been packaged.
There have been 3 errors.
Copied from Log File: Integration\PartPkg.log:
//==================================================>>
我的软件刚安装的，第一次使用Dx Designer做原理图设计。
//==================================================>>
Target PDB Name: Integration\LocalPartsDB.pdb
ERROR: Unable to open Source Parts Data Base D:\Mentorwork\CenterLibrary\EE2007_DX-Expedition.Central Library-o\PartsDBLibs\Module-Through.pdb for reading.
Suspending getting parts by Part Number.
ERROR: Unable to create local PDB
ERROR: Problem Making Local Parts DataBase
Testing of Packaging is being terminated with 3 errors and 0 warnings.
Design has NOT been packaged.
There have been 3 errors.
Copied from Log File: Integration\PartPkg.log:
//==================================================>>
该问题已解决。
原因如下：
在Schemes所引用的Center Library中丢失部分pdb文件。及在Library Magager中创建该Center Library时，Parts的文件丢失，或Parts中没有组建成对的Cells和Symbols！
