菜鸟请教
录入：edatop.com 点击：
为什么我的PSPICE10.5在仿真的时候总出现there are netlisting errors please refer to the session log 而导致无法进行仿真?谢谢
请把session log发上来看看

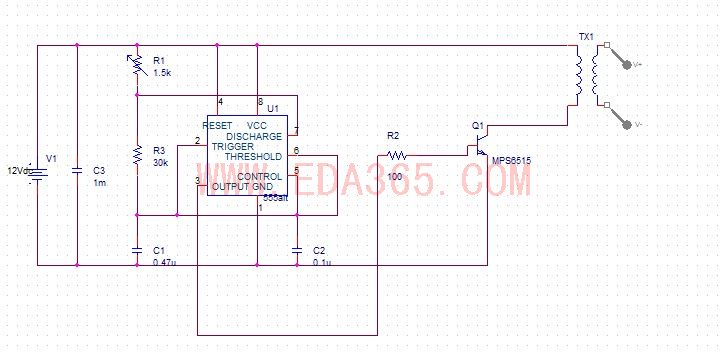

2# jijiwaiwaihaha
Creating PSpice Netlist
Writing PSpice Flat Netlist C:\OrCAD_Data\2-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
ERROR [NET0075] Unconnected pin, no FLOAT property or FLOAT = e TX1 pin '4'
ERROR [NET0075] Unconnected pin, no FLOAT property or FLOAT = e TX1 pin '6'
Creating PSpice Netlist
Writing PSpice Flat Netlist C:\OrCAD_Data\1-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
ERROR [NET0075] Unconnected pin, no FLOAT property or FLOAT = e TX1 pin '3'
ERROR [NET0075] Unconnected pin, no FLOAT property or FLOAT = e TX1 pin '4'
我知道了 谢谢啊
