为什么part reference 属性下的名字不一样？请资深工程师解答
录入：edatop.com 点击：

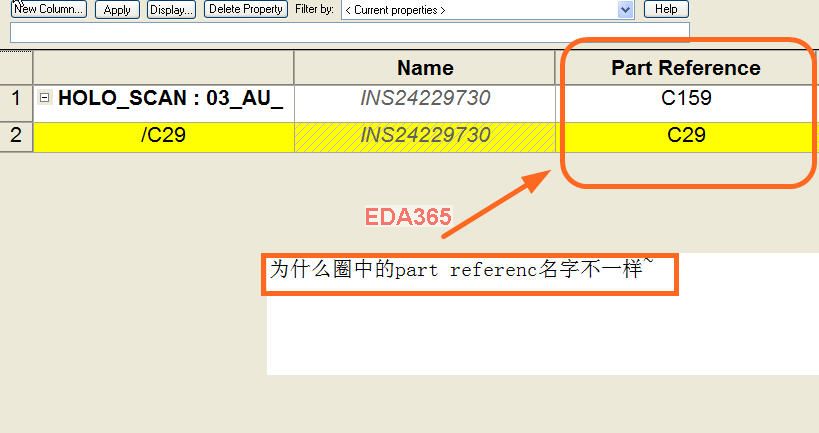

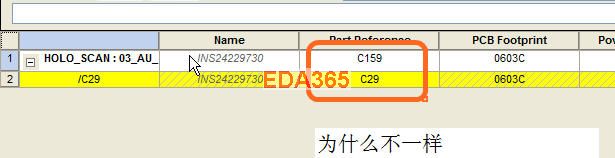

\请教高手，如下图
你的問題跟 http://www.eda365.com/thread-45021-1-1.html 相同.
可能是階層式繪製原理圖造成的.請參閱 http://www.eda365.com/thread-30786-1-1.html
回复 jacklee_47pn 的帖子
Thanks~
A command in Capture menu Accessories-->Transfer Occ. Prop to Instance-->Push Occ. Prop into Instance
WARNING: make sure you UNCHECK "Use this to remove all the Occurence properties from the design......".
After running this all my reference mismatch were resolved. I was able to copy parts or even whole page without problem.
不错，学习了。我从altium转过来也遇到这个问题，谢谢了
