Occurrence和Instance模式

录入:edatop.com     点击:

请问大侠,ORCAD树状结构,正确的设计模式应该为那种?谢谢!

请见附图:

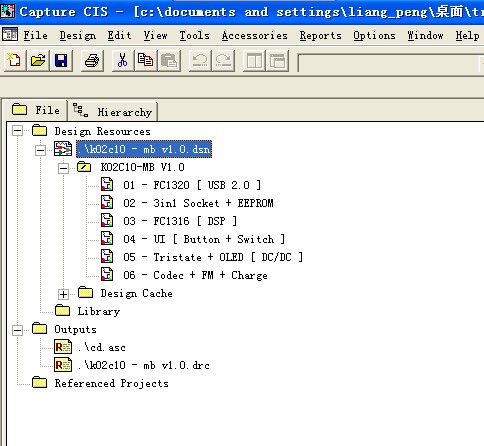

设计结构如下:


设计模式如下:

How Capture uses instance and occurrence properties

The type of property you update or use in Capture depends on the type of project in which you are working. If you are working with an FPGA project or a PSpice project, Capture allows you a choice, but defaults to update instances when you use the Annotate, Update Properties or Export Properties commands. It is best that you use instances to create Cross Reference and Bill of Materials reports, as well.

When you work with a PCB or schematic project, it is best to update occurrences when you use the Annotate, Update Properties, and Export Property commands. In these projects, Capture also uses occurrences to create reports with Cross Reference and Bill of Materials.
