希望大家能够帮我解决一下这简单的问题
我刚刚开始学写ORCAD。用的是OrCAD 10.3.

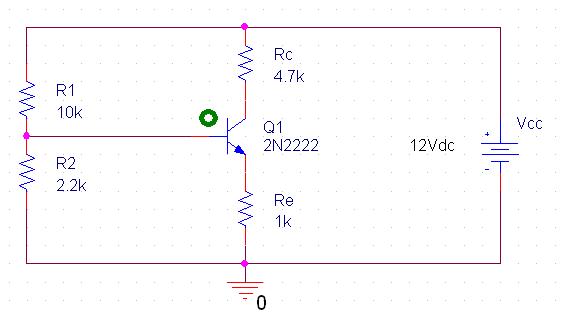

电路的原理图在附件里,但是在进行直流工作点仿真的时候出现以下问题:
**** 06/16/07 20:47:15 ******* PSpice 10.3.0 (Jan 2004) ******* ID# 1111111111
** Profile: "SCHEMATIC1-DC1-BIAS" [ F:\PSpice\DC1-PSpiceFiles\SCHEMATIC1\DC1-BIAS.sim ]
**** CIRCUIT DESCRIPTION
******************************************************************************
** Creating circuit file "DC1-BIAS.cir"
** WARNING: THIS AUTOMATICALLY GENERATED FILE MAY BE OVERWRITTEN BY SUBSEQUENT SIMULATIONS
*Libraries:
* Profile Libraries :
* Local Libraries :
* From [PSPICE NETLIST] section of C:\OrCAD\OrCAD_10.3\tools\PSpice\PSpice.ini file:
.lib "nom.lib"
*Analysis directives:
.OP
.PROBE V(alias(*)) I(alias(*)) W(alias(*)) D(alias(*)) NOISE(alias(*))
.INC "..\SCHEMATIC1.net"
**** INCLUDING SCHEMATIC1.net ****
* source DC1
R_Rc N000651 N02145 4.7k
R_R1 N02179 N02145 10k
R_R2 0 N02179 2.2k
R_Re 0 N001130 1k
V_Vcc N02145 0 12Vdc
**** RESUMING DC1-BIAS.cir ****
.END
ERROR -- Less than 2 connections at node N000651
ERROR -- Less than 2 connections at node N001130
各位帮帮我这个菜鸟吧。先谢谢各位拉。
