candence生成gerber时遇到了问题
录入：edatop.com 点击：
FILM PARAMETERS :
---------------------------------------------------------
Undefined line width 10.00
Mirror code NONE
Rotate angle NONE
Offset x: 0.00
Offset y: 0.00
Plot negative NO
Suppress unconnected internal pads NO
WARNING: Photoplot window (21000 x 17000) exceeds film size (24000 x 16000)
stated in parameter file.
APERTURES USED:
---------------------------------------------------------
TYPE SIZE/NAME ROT MIRROR MODE
---------------------------------------------------------
CIRCLE 0.01600 DARK
CIRCLE 0.02000 DARK
CIRCLE 0.02200 DARK
CIRCLE 0.04000 DARK
CIRCLE 0.05500 DARK
CIRCLE 0.06000 DARK
CIRCLE 0.06500 DARK
CIRCLE 0.07000 DARK
CIRCLE 0.08000 DARK
CIRCLE 0.11000 DARK
CIRCLE 0.21102 DARK
SQUARE 0.04300 0.000 NO DARK
SQUARE 0.05100 0.000 NO DARK
SQUARE 0.06000 0.000 NO DARK
SQUARE 0.06500 0.000 NO DARK
SQUARE 0.07000 0.000 NO DARK
SQUARE 0.08000 0.000 NO DARK
SQUARE 0.24000 0.000 NO DARK
RECTANGLE 0.01100 x 0.01700 0.000 NO DARK
RECTANGLE 0.01100 x 0.01700 90.000 NO DARK
RECTANGLE 0.01300 x 0.02500 0.000 NO DARK
RECTANGLE 0.01300 x 0.03300 0.000 NO DARK
RECTANGLE 0.01400 x 0.03200 0.000 NO DARK
RECTANGLE 0.01400 x 0.03200 90.000 NO DARK
RECTANGLE 0.02200 x 0.01800 0.000 NO DARK
RECTANGLE 0.02200 x 0.01800 45.000 NO DARK
RECTANGLE 0.02200 x 0.01800 90.000 NO DARK
RECTANGLE 0.02750 x 0.02500 0.000 NO DARK
RECTANGLE 0.02750 x 0.02500 90.000 NO DARK
RECTANGLE 0.02800 x 0.01550 0.000 NO DARK
RECTANGLE 0.02800 x 0.01550 90.000 NO DARK
RECTANGLE 0.03100 x 0.05500 90.000 NO DARK
RECTANGLE 0.04400 x 0.05300 90.000 NO DARK
RECTANGLE 0.04700 x 0.06000 179.943 NO DARK
RECTANGLE 0.05100 x 0.05800 0.000 NO DARK
RECTANGLE 0.08000 x 0.04700 0.000 NO DARK
RECTANGLE 0.23000 x 0.01550 90.000 NO DARK
RECTANGLE 0.23000 x 0.10000 90.000 NO DARK
OBLONG 0.01200 x 0.03900 0.000 NO DARK
OBLONG 0.01200 x 0.03900 90.000 NO DARK
FLASH SYM CIR40 0.000 NO DARK (undefined)
ERROR: aborting film - Undefined aperture symbol, cannot continue.
See APERTURES USED table in this file for symbols to provide.
Error in TOP--halting output. Artwork file not generated.
*** ERROR with TOP
这里说少了cir40的FLASH，但是我应该怎么添加呢?
我找到了用到cir40的地方

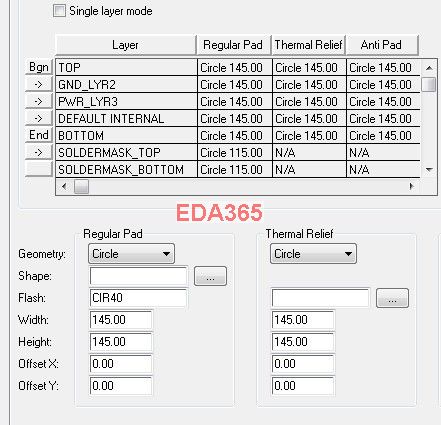

我现在应该怎么做呢?求高手指教。它在rgular pad那里用到了FLASH。谢谢！
---------------------------------------------------------
Undefined line width 10.00
Mirror code NONE
Rotate angle NONE
Offset x: 0.00
Offset y: 0.00
Plot negative NO
Suppress unconnected internal pads NO
WARNING: Photoplot window (21000 x 17000) exceeds film size (24000 x 16000)
stated in parameter file.
APERTURES USED:
---------------------------------------------------------
TYPE SIZE/NAME ROT MIRROR MODE
---------------------------------------------------------
CIRCLE 0.01600 DARK
CIRCLE 0.02000 DARK
CIRCLE 0.02200 DARK
CIRCLE 0.04000 DARK
CIRCLE 0.05500 DARK
CIRCLE 0.06000 DARK
CIRCLE 0.06500 DARK
CIRCLE 0.07000 DARK
CIRCLE 0.08000 DARK
CIRCLE 0.11000 DARK
CIRCLE 0.21102 DARK
SQUARE 0.04300 0.000 NO DARK
SQUARE 0.05100 0.000 NO DARK
SQUARE 0.06000 0.000 NO DARK
SQUARE 0.06500 0.000 NO DARK
SQUARE 0.07000 0.000 NO DARK
SQUARE 0.08000 0.000 NO DARK
SQUARE 0.24000 0.000 NO DARK
RECTANGLE 0.01100 x 0.01700 0.000 NO DARK
RECTANGLE 0.01100 x 0.01700 90.000 NO DARK
RECTANGLE 0.01300 x 0.02500 0.000 NO DARK
RECTANGLE 0.01300 x 0.03300 0.000 NO DARK
RECTANGLE 0.01400 x 0.03200 0.000 NO DARK
RECTANGLE 0.01400 x 0.03200 90.000 NO DARK
RECTANGLE 0.02200 x 0.01800 0.000 NO DARK
RECTANGLE 0.02200 x 0.01800 45.000 NO DARK
RECTANGLE 0.02200 x 0.01800 90.000 NO DARK
RECTANGLE 0.02750 x 0.02500 0.000 NO DARK
RECTANGLE 0.02750 x 0.02500 90.000 NO DARK
RECTANGLE 0.02800 x 0.01550 0.000 NO DARK
RECTANGLE 0.02800 x 0.01550 90.000 NO DARK
RECTANGLE 0.03100 x 0.05500 90.000 NO DARK
RECTANGLE 0.04400 x 0.05300 90.000 NO DARK
RECTANGLE 0.04700 x 0.06000 179.943 NO DARK
RECTANGLE 0.05100 x 0.05800 0.000 NO DARK
RECTANGLE 0.08000 x 0.04700 0.000 NO DARK
RECTANGLE 0.23000 x 0.01550 90.000 NO DARK
RECTANGLE 0.23000 x 0.10000 90.000 NO DARK
OBLONG 0.01200 x 0.03900 0.000 NO DARK
OBLONG 0.01200 x 0.03900 90.000 NO DARK
FLASH SYM CIR40 0.000 NO DARK (undefined)
ERROR: aborting film - Undefined aperture symbol, cannot continue.
See APERTURES USED table in this file for symbols to provide.
Error in TOP--halting output. Artwork file not generated.
*** ERROR with TOP
这里说少了cir40的FLASH，但是我应该怎么添加呢?
我找到了用到cir40的地方
我现在应该怎么做呢?求高手指教。它在rgular pad那里用到了FLASH。谢谢！
应该是没生成光圈文件吧，你运行一下APERTURES试试。
