怎么把spb16.5 Allegro Design Entry的start Page禁止掉？
录入：edatop.com 点击：
怎么把spb16.5 Allegro Design Entry的start Page禁止掉?每次打开都主动联网。很烦

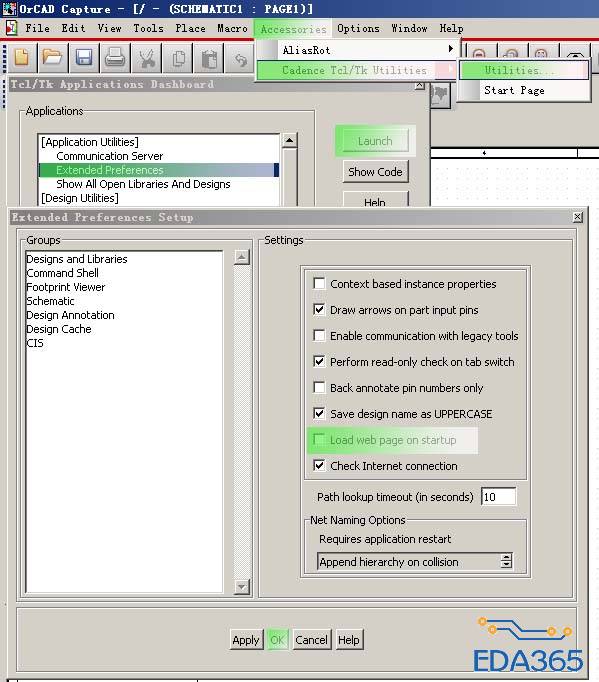

To disable the "Start Page" when starting Capture, see the following steps.
1. Open any design in Capture.
2. From the Menu bar, select "Accessories \ Cadence Tcl/Tk Utilities \ Utilities".
3. In the "Tcl/Tk Applications Dashboard", select "Extended Preferences" and press the Launch button.
4. In the column 'Settings', uncheck "Load web page on startup" and then the 'OK' button a the bottom.
very good
thanks a lot
呵呵，还有这种方法啊，谢谢
Invoke Capture.
1. Go to View > Toolbar and check the "Command Window" (If it is not checked)
2. Type the following command in Command Window and press ENTER
SetOptionBool EnableStartPage 0
3. Close the Capture and reopen. Now, the startup page would not come
很好！
非常经典哈哈，感谢分享
