orcad创建网表时出错，请帮忙
录入：edatop.com 点击：

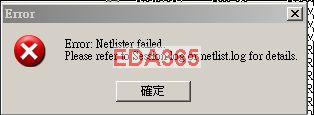

出错，请看下图示和log，求解。谢谢
********************************************************************************
*
* Netlisting the design
*
********************************************************************************
Design Name:
e:\test-allegro\tcon\s190hql_mb.dsn
Netlist Directory:
E:\TEST-ALLEGRO\2
Configuration File:
C:\Cadence\SPB_15.7\tools\capture\allegro.cfg
Spawning... "C:\Cadence\SPB_15.7\tools\capture\pstswp.exe" -pst -d "e:\test-allegro\tcon\s190hql_mb.dsn" -n "E:\TEST-ALLEGRO\2" -c "C:\Cadence\SPB_15.7\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"
#1 Error [ALG0065] Illegal character in \ic-tsum5arw(h)l3_0.normal\.
#2 Error [ALG0065] Illegal character in IC-TSUM5ARW(H)L3_0.
#3 Aborting Netlisting... Please correct the above errors and retry.
Exiting... "C:\Cadence\SPB_15.7\tools\capture\pstswp.exe" -pst -d "e:\test-allegro\tcon\s190hql_mb.dsn" -n "E:\TEST-ALLEGRO\2" -c "C:\Cadence\SPB_15.7\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"
*** Done ***
********************************************************************************
*
* Spawing Allegro PCB Editor
*
********************************************************************************
Spawing "C:\Cadence\SPB_15.7\tools\pcb\bin\allegro.exe" -mpssession Kiven.Zong "e:\test-allegro\tcon\allegro\s190hql_mb.brd"
*** Done ***
请帮忙啊
********************************************************************************
*
* Netlisting the design
*
********************************************************************************
Design Name:
e:\test-allegro\tcon\s190hql_mb.dsn
Netlist Directory:
E:\TEST-ALLEGRO\2
Configuration File:
C:\Cadence\SPB_15.7\tools\capture\allegro.cfg
Spawning... "C:\Cadence\SPB_15.7\tools\capture\pstswp.exe" -pst -d "e:\test-allegro\tcon\s190hql_mb.dsn" -n "E:\TEST-ALLEGRO\2" -c "C:\Cadence\SPB_15.7\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"
#1 Error [ALG0065] Illegal character in \ic-tsum5arw(h)l3_0.normal\.
#2 Error [ALG0065] Illegal character in IC-TSUM5ARW(H)L3_0.
#3 Aborting Netlisting... Please correct the above errors and retry.
Exiting... "C:\Cadence\SPB_15.7\tools\capture\pstswp.exe" -pst -d "e:\test-allegro\tcon\s190hql_mb.dsn" -n "E:\TEST-ALLEGRO\2" -c "C:\Cadence\SPB_15.7\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"
*** Done ***
********************************************************************************
*
* Spawing Allegro PCB Editor
*
********************************************************************************
Spawing "C:\Cadence\SPB_15.7\tools\pcb\bin\allegro.exe" -mpssession Kiven.Zong "e:\test-allegro\tcon\allegro\s190hql_mb.brd"
*** Done ***
请帮忙啊
我用第三方软件导出网表的时候，很正常，是ok的。郁闷啊。
回复 zongk 的帖子
封装有非法字符
1 Error [ALG0065] Illegal character in \ic-tsum5arw(h)l3_0.normal\.
& H5 e6 i4 q7 F' K$ Q( }#2 Error [ALG0065] Illegal character in IC-TSUM5ARW(H)L3_0
有非法字符了
有什么解决办法吗?
我用的第三方软件可以把非法字符过滤掉的。
差别就在这里啊，郁闷呐。有方案吗?求解。谢谢
3楼 正解 顶～～
然后，除了用第三方软件过滤掉，能用其他方法解决吗?
