急急！求助，BGA不能扇出

是中文路径不对吧！

不是啊，我换成英文路径来还是不行，大家没有遇到过吗

#
# ===============================================================================
#                               Allegro PCB Router
# Copyright 1990-2006 Cadence Design Systems, Inc.  All Rights Reserved.
# ===============================================================================
#
# Software licensed for sale by Cadence Design Systems, Inc.
# Current time = Fri Jul 29 13:27:38 2011
#
# Allegro PCB Router v16-3-85 made 2009/11/03 at 11:55:32
# Running on: zlcao1053o, OS Version: WindowsNT 5.1.2600, Architecture: Intel Pentium II, III, or 4
# Licensing: The program will not obey any unlicensed rules
# No graphics will be displayed.
# Design Name C:/Documents and Settings/zengliang.cao/桌面/新建文件夹 (2)\07291021.dsn
# Batch File Name: pasde.do
# Did File Name: C:/Documents and Settings/zengliang.cao/桌面/新建文件夹 (2)/specctra.did
# Current time = Fri Jul 29 13:27:38 2011
# PCB C:/Documents and Settings/zengliang.cao/桌面/新建文件夹 (2)
# <<ERROR:>> Error in file C:/Documents and Settings/zengliang.cao/桌面/新建文件夹 (2)\07291021.dsn, line 1: token 7 = 2
# (content): (PCB C:/Documents and Settings/zengliang.cao/桌面/新建文件夹 (2)/07291021.brd

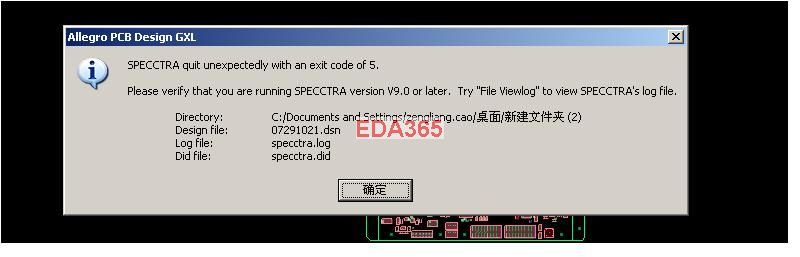

这是根据他的提示查看APECCTRA的结果，但是不太明白是哪有问题

换16.2就可以了。

一个是中文路径，另一个是你的用户名：zengliang.cao
不要在路径中使用中文和“."这类字符

路径不能有中文、空格，其实很不推荐放在桌面上。
