Export ODB++ 文件出错
录入：edatop.com 点击：

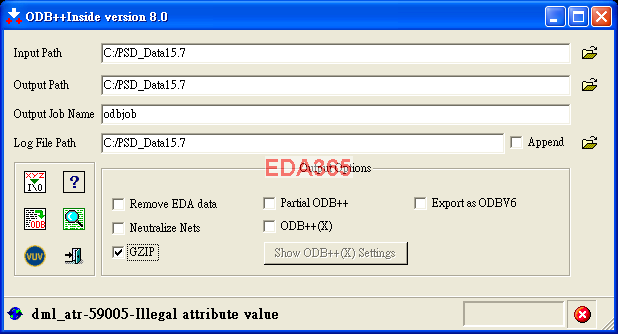

dml atr 59005 illegal attribute value
使用Allegro15.7 转出 但出现此讯息不知如何解决?
附上转出 lodb log 讯息
Prepare layer structure...
*********** WARNING 01Nov2011.101913.343 2456 8.0(31) Windows XP
Source layername is reserved.It will be modified
Read padstacks...
Read components...
*********** WARNING 01Nov2011.101913.406 2456 8.0(31) Windows XP
Component U* has empty package name.
*********** WARNING 01Nov2011.101913.406 2456 8.0(31) Windows XP
Component U* has empty package name.
*********** WARNING 01Nov2011.101913.406 2456 8.0(31) Windows XP
Component U* has empty package name.
*********** WARNING 01Nov2011.101913.406 2456 8.0(31) Windows XP
Component U* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component FI* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
*********** WARNING 01Nov2011.101913.421 2456 8.0(31) Windows XP
Component J* has empty package name.
Read pins...
Add subnets ...
Add drills ...
Add drills ...
Read geometries...
Read properties...
Complete pg layers ...
Done - 3 seconds
Create step profile ...
Complete step ...
先看能不能生成光绘……
可生成光绘
要用ODB V8.2版本的出！低版本的不行了！
感谢解答
升级至ODB++ Inside V8.2
就正常了........
http://www.eda365.com/forum.php?mod=viewthread&tid=67187
ODB++软件下载
弱问ODB是神马?
ODB++，一种光绘数据格式，由valor公司（现在已经被mentor收购）制定，主要用于valor软件的信息传递。
