请问负片模式下孤铜删除方法
录入：edatop.com 点击：

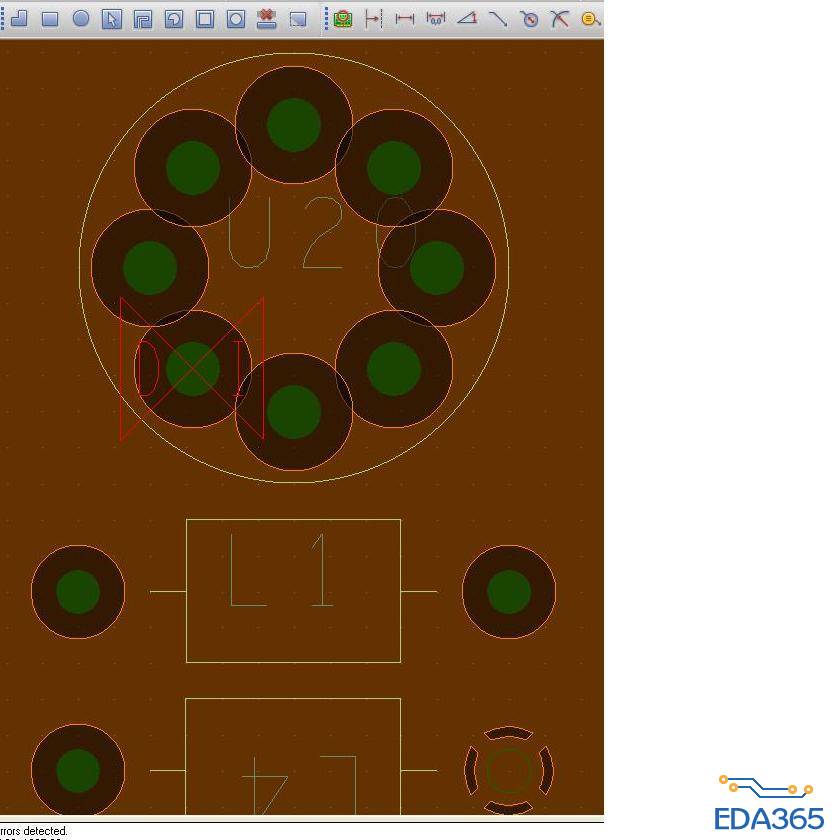

在内电层或地层采用负片模式，产生的孤铜是否只能采用shap->manual void->选相应形状的方法删除。好像shap-> delete islands无效。谢谢！
内层VCC 负片 动态铜箔
DRC信息
LISTING: 1 element(s)
< DRC ERROR >
Class: DRC ERROR CLASS
Subclass: VCC
Origin xy: (3180.00 1230.00)
Constraint: Negative Plane Islands
Constraint Set: NONE
Constraint Type: DESIGN
Constraint value: 0 MIL
Actual value: 0 MIL
- - - - - - - - - - - - - - - - - - - -
Element type: SHAPE
Class: ETCH
Subclass: VCC
Part of net name: VCC
- - - - - - - - - - - - - - - - - - - -
Element type: ISLAND_DRC
Name: UNNAMED
Type: ISLAND_DRC
Members:
Assigned Pins:
U20.8
U20.1
U20.2
U20.3
U20.4
U20.5
U20.6
U20.7
貌似中间孤铜的删除方法：一是缩小ANTI PAD 二是shap->manual void
不好意思，我再用负片画图的时候才用的就是shap-> delete islands可以使用，所以我也很关切这个问题。您的铜皮是不是没有升级呀，您升级后在shap-> delete islands，您看看可以吗
内层VCC 负片 动态铜箔
DRC信息
LISTING: 1 element(s)
< DRC ERROR >
Class: DRC ERROR CLASS
Subclass: VCC
Origin xy: (3180.00 1230.00)
Constraint: Negative Plane Islands
Constraint Set: NONE
Constraint Type: DESIGN
Constraint value: 0 MIL
Actual value: 0 MIL
- - - - - - - - - - - - - - - - - - - -
Element type: SHAPE
Class: ETCH
Subclass: VCC
Part of net name: VCC
- - - - - - - - - - - - - - - - - - - -
Element type: ISLAND_DRC
Name: UNNAMED
Type: ISLAND_DRC
Members:
Assigned Pins:
U20.8
U20.1
U20.2
U20.3
U20.4
U20.5
U20.6
U20.7
貌似中间孤铜的删除方法：一是缩小ANTI PAD 二是shap->manual void
